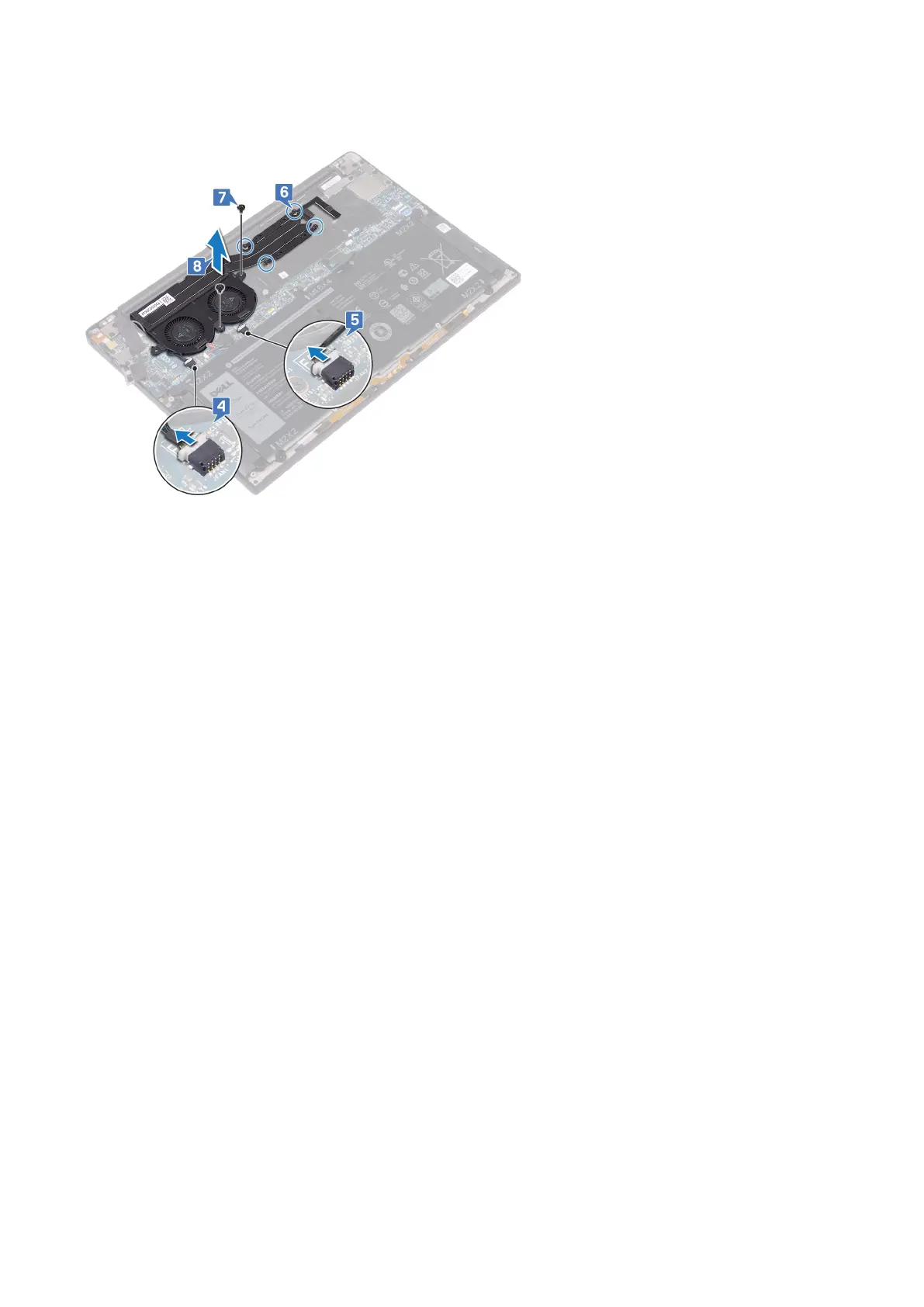

7. Remove the two screws (M1.6x3) that secure the heat-sink assembly to the system board.

8. Lift the heat-sink assembly along with the left-fan and the right-fan cable off the system board.

34 Removing the heat-sink assembly
