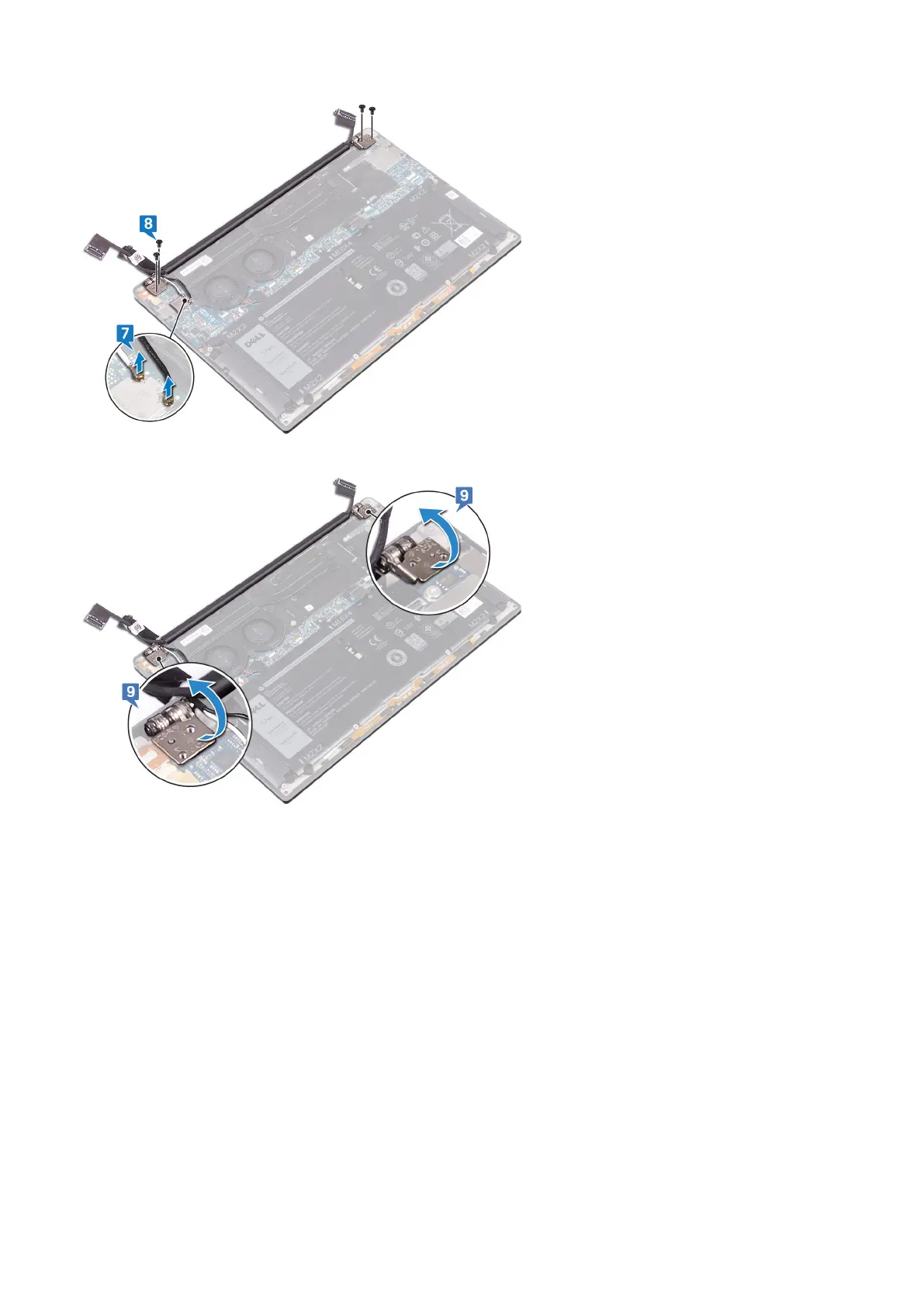

9. Manually open the hinges to a 90-degree angle.

10. Gently slide and lift the display assembly from the palm-rest assembly.

Removing the display assembly
