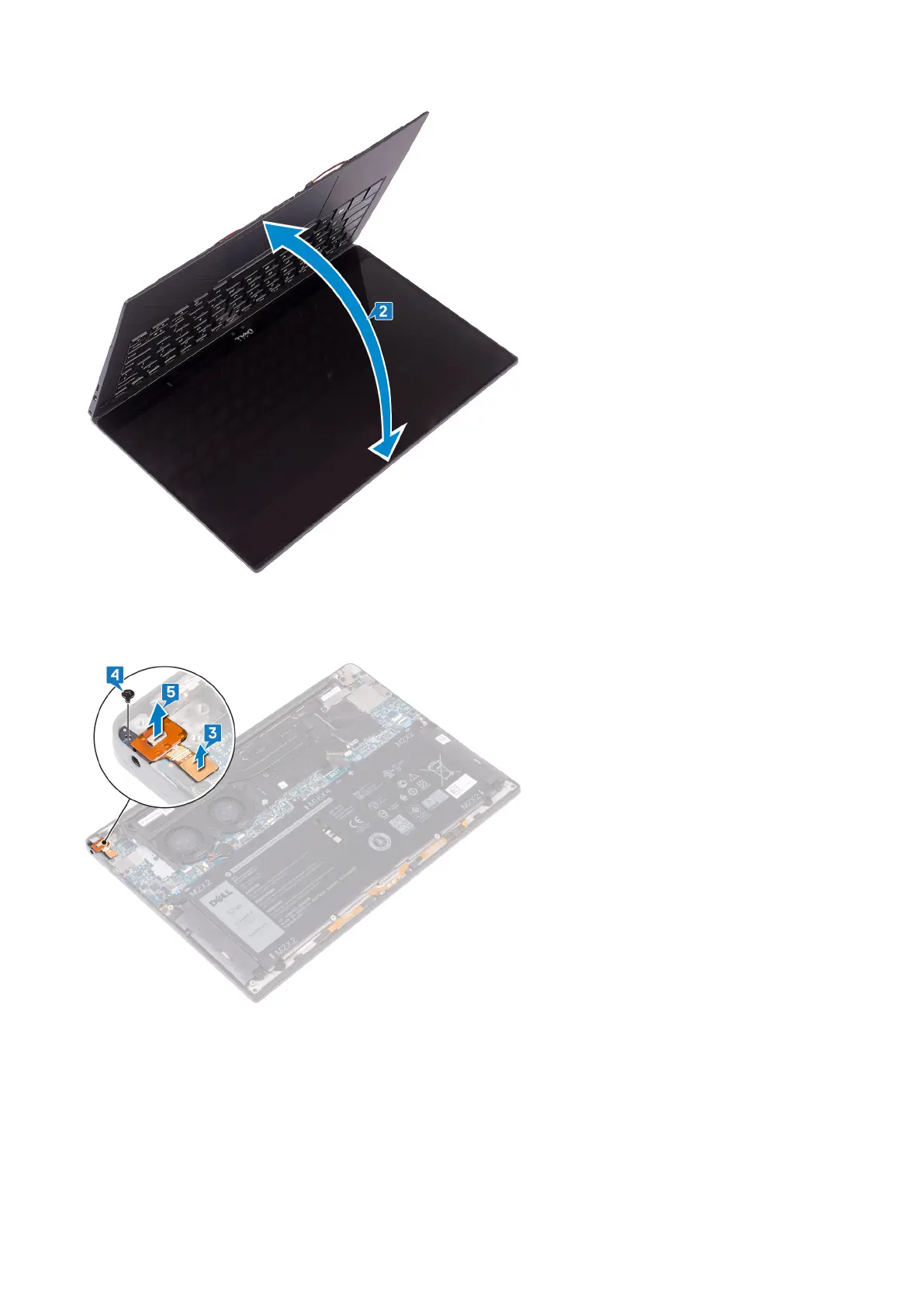

3. Disconnect the headset-port cable from the system board.

4. Remove the screw (M1.6x3) that secures the headset port to the palm-rest assembly.

5. Lift the headset port from the system board.

Removing the headset port
