Dell P86F - Page 22

Installing the battery
Steps

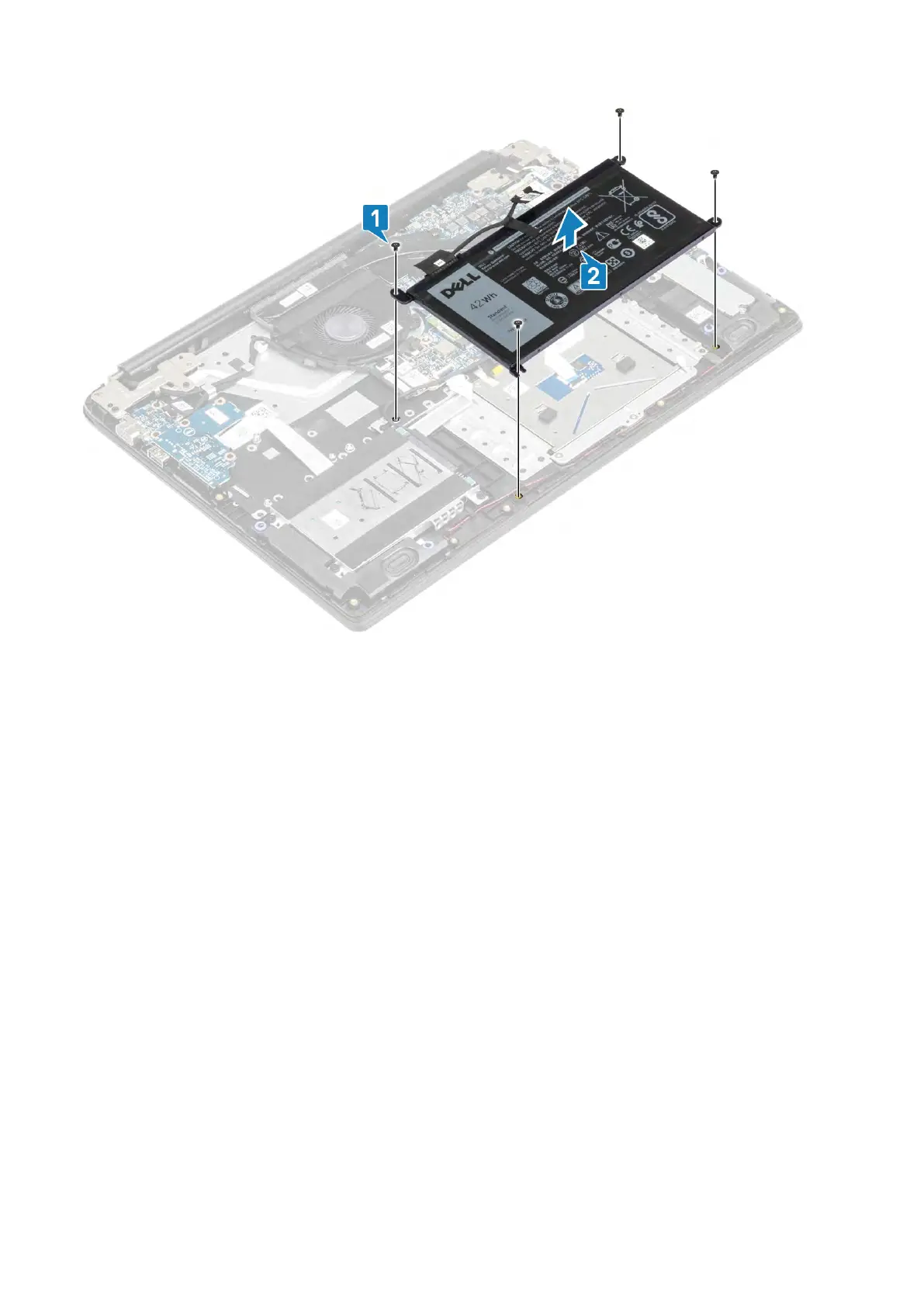

1. Align the screw holes on the battery with the screw holes on the palmrest and keyboard assembly [1].
2. Replace the four (M2x3) screws that secure the battery to the palmrest and keyboard assembly [2].
22 Removing and installing components
