Next steps
1. Replace the battery
2. Replace the base cover
3. Replace the SD memory card
4. Follow the procedure in after working inside your computer
Power-button board
Removing the power button board with optional fingerprint reader
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the SD memory card
.
3. Remove the base cover.
4. Remove the battery.
5. Remove the
system fan.
6. Remove the display assembly.
Steps

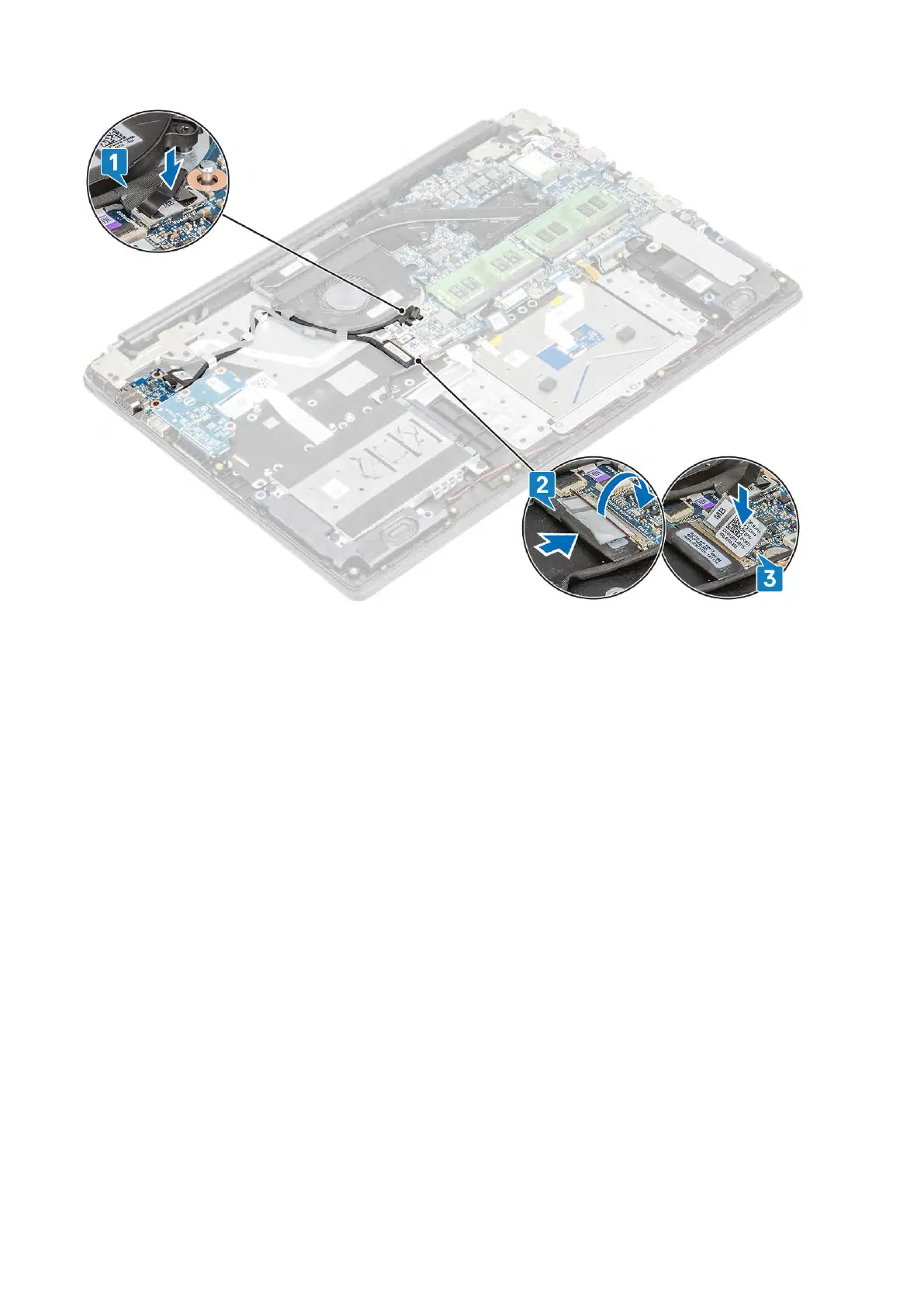

1. Open the latch, and disconnect the power button board cable and fingerprint cable from the system [1].
2. Peel the conductive tape off the power button board
[2]
.
70 Removing and installing components
