Dell P86F - Page 71

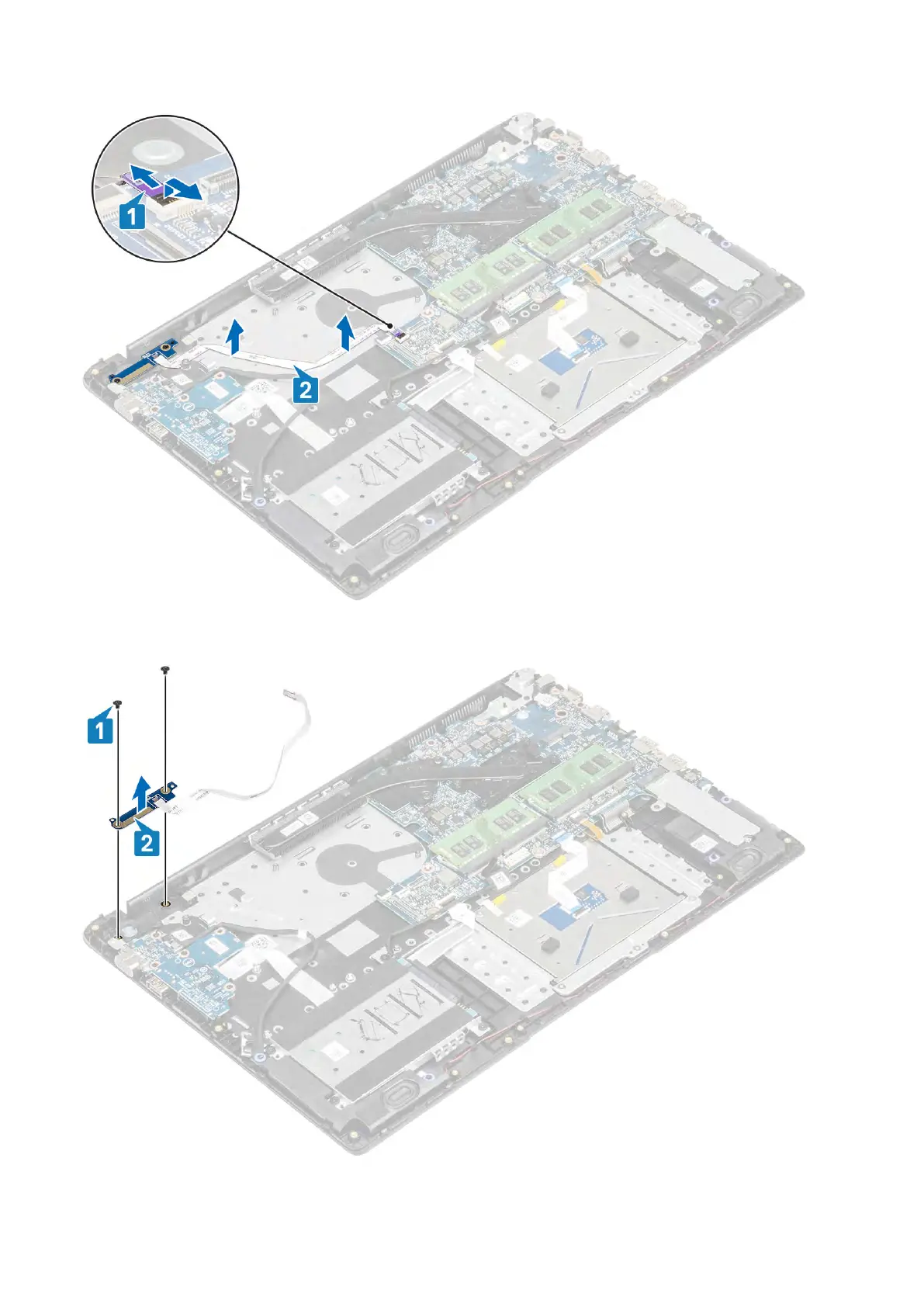

3. Remove the two (M2x3) screws that secure the power button board to the palmrest and keyboard assembly [1].
4. Lift the power button board, along with the cable off the palmrest and keyboard assembly [2].
Removing and installing components 71
