Installing the hard drive assembly
Steps

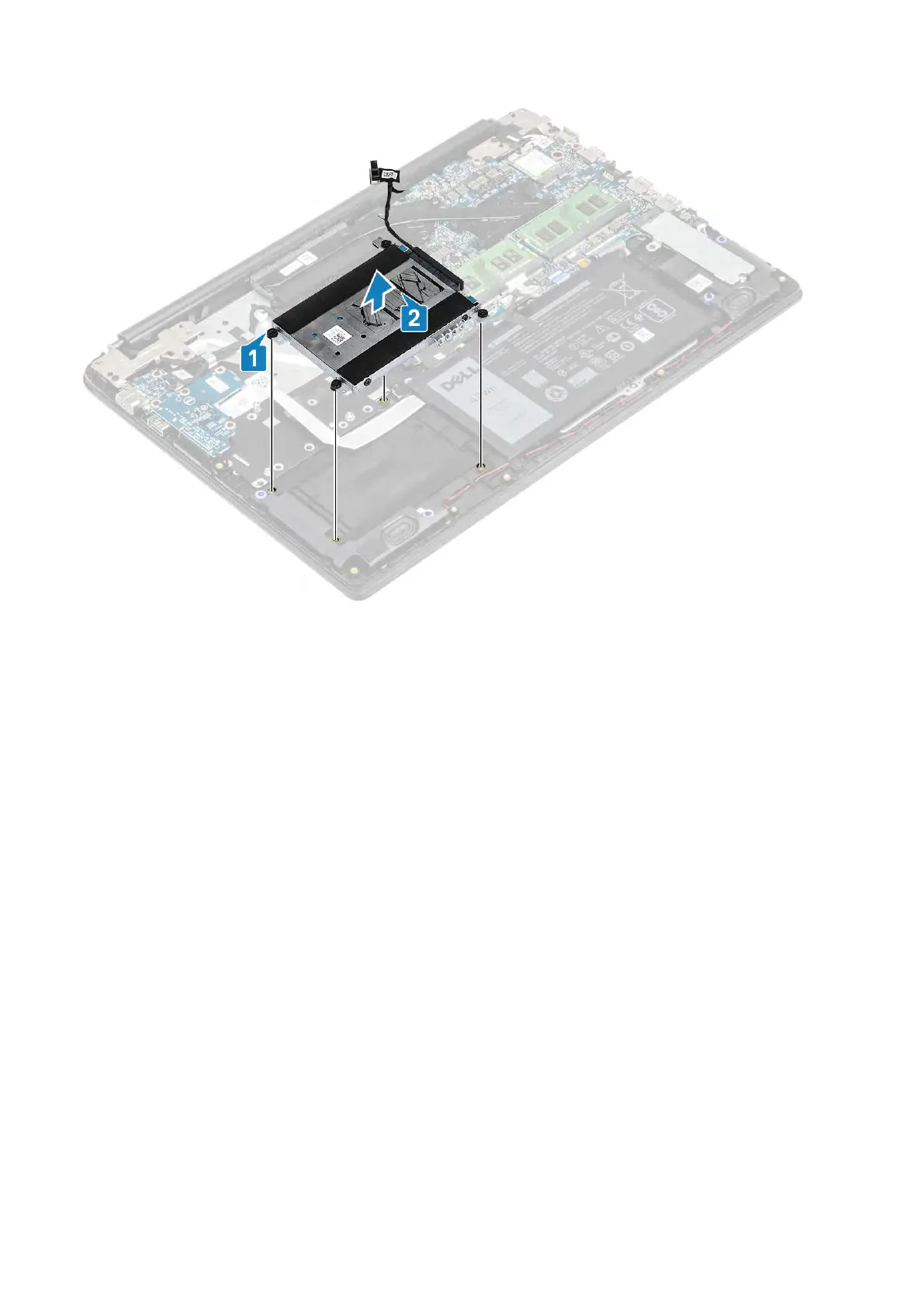

1. Align the screw holes on the hard drive assembly with the screw holes on the palm rest and keyboard assembly [1].
2. Replace the four (M2x4) screws that secure the hard drive assembly to the palm rest and keyboard assembly [2].
