Dell P86F - Page 34

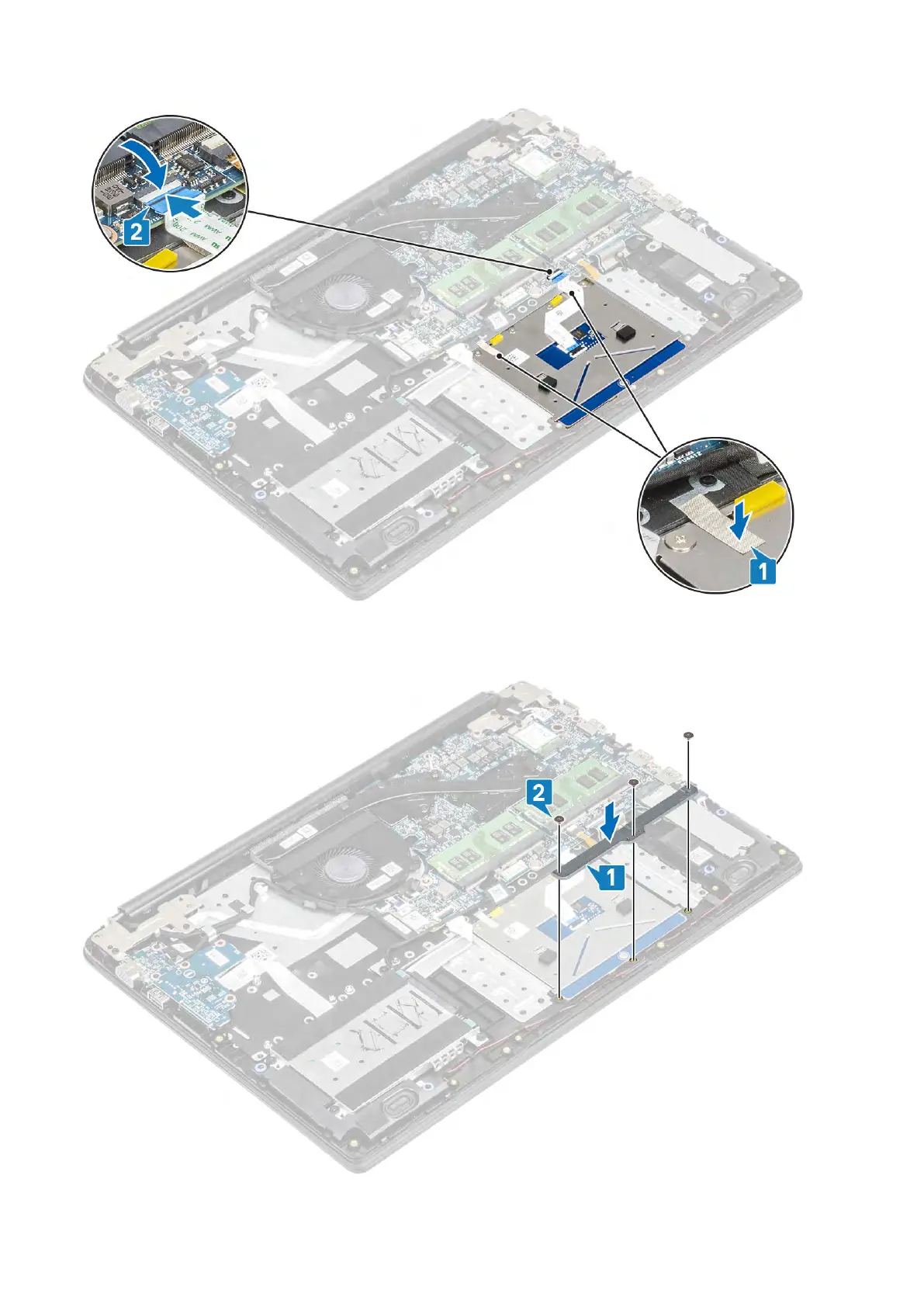

5. Place the touch pad bracket into the slot on the palmrest and keyboard assembly [1].
6. Replace the three screws (M2x2) that secure the touch pad bracket to the palmrest and keyboard assembly [2], and adhere the tape
that secures the bracket to the palmrest.
34 Removing and installing components
