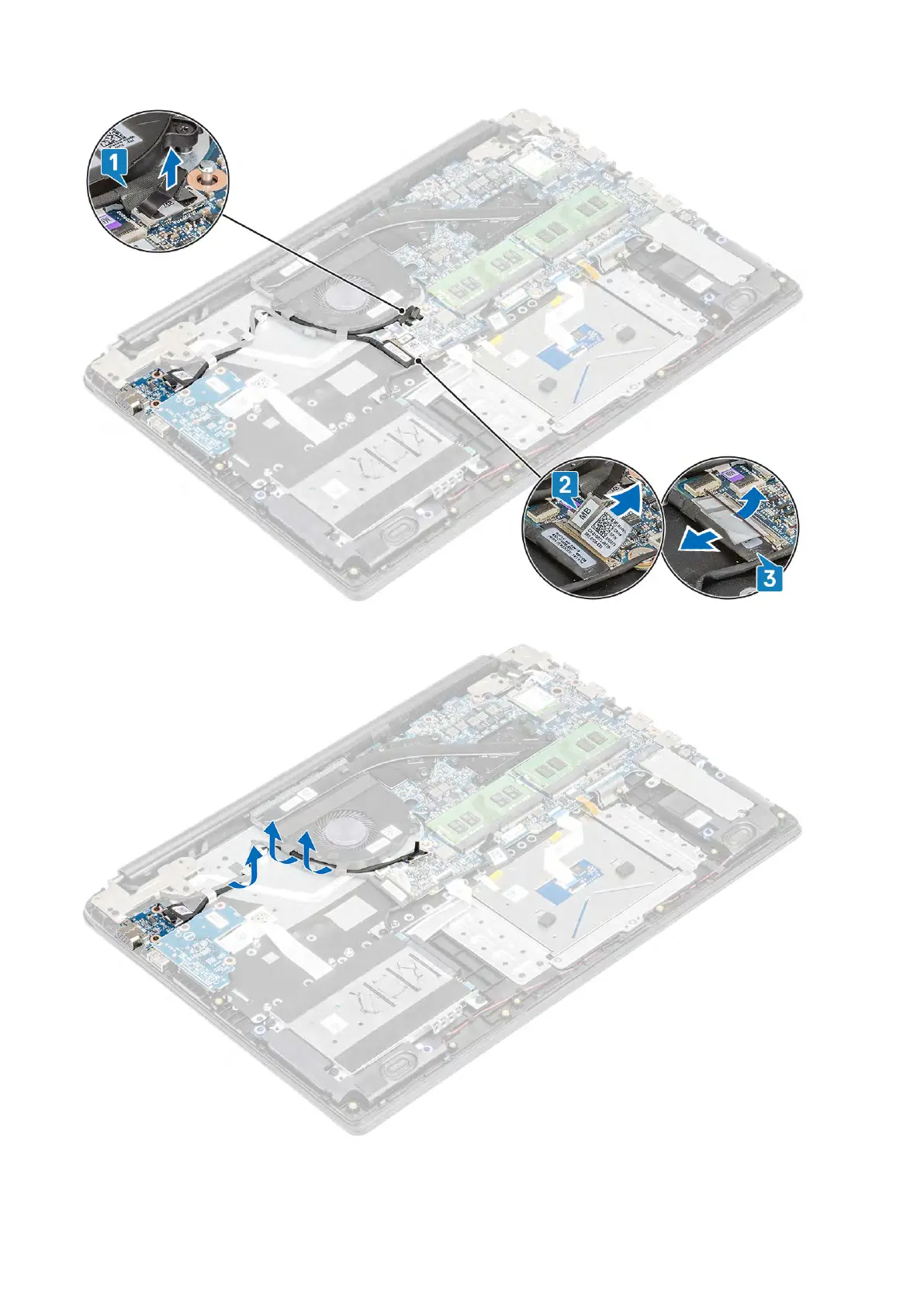

2. Unroute the VGA board cable and the display cable from the routing guides on the fan.
3. Remove the two (M2x3) screws that secure the VGA daughterboard to the palmrest and keyboard assembly [1].
4. Lift the VGA daughterboard away from the system [2].
