Dell P86F - Page 80

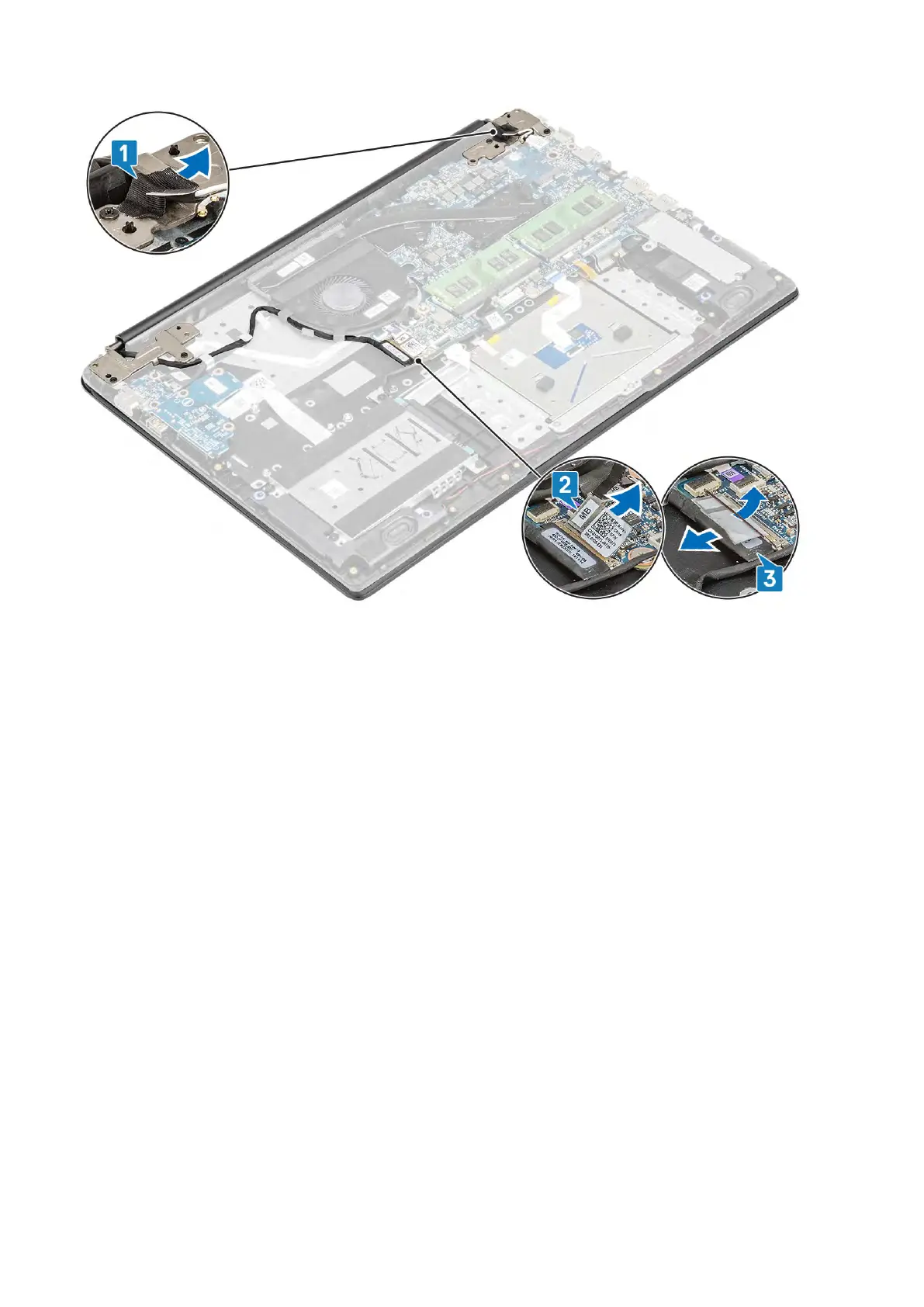

3. Unroute the display cable from the routing guides on the palmrest and keyboard assembly [1].
4. Remove the four (M2.5x5) screws that secure the left and right hinges to the system board, and palmrest and keyboard assembly [2].
80 Removing and installing components
