Installing the display hinges
Steps

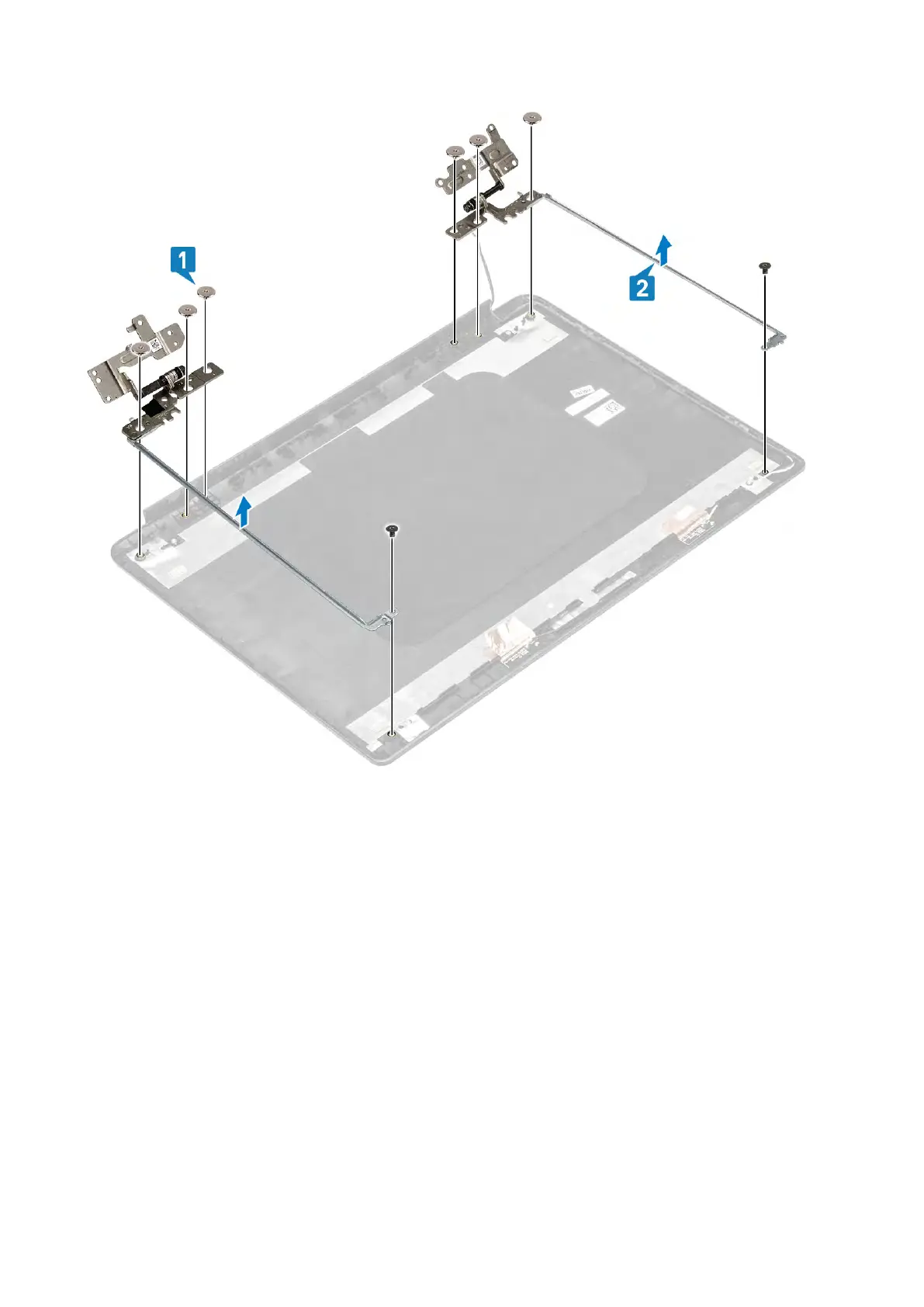

1. Align the screw holes on the hinges and brackets with the screw holes on the display back-cover[1].
2. Replace the six (M2.5x2.5) screws and two (M2x2.5) screws that secure the hinges to the display back-cover [2].
