Removing the right fan
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task

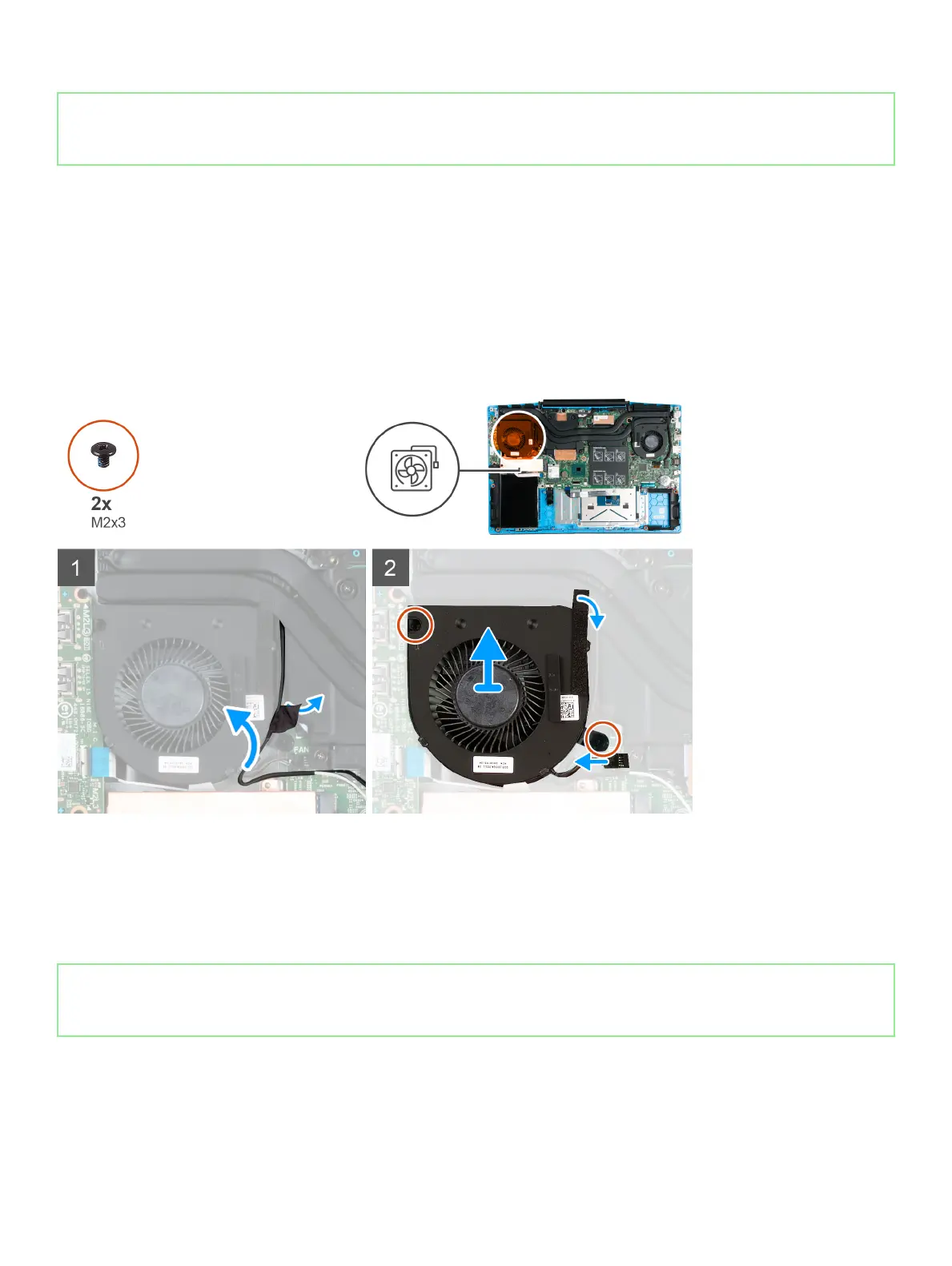

The following image indicates the location of the right fan and provides a visual representation of the installation
procedure.
Steps
1. Disconnect the right-fan cable from the system board.
2. Peel the tape that secures the right fan to the system board.
3. Remove the two (M2x3) screws that secure the right fan to the system board.
4. Lift the right fan off the palm-rest and keyboard assembly.
Installing the left fan
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the left fan and provides a visual representation of the installation procedure.
Removing and installing components
31
