Steps
1. Place the computer on a flat surface near the edge with its display assembly perpendicular to the palm-rest and keyboard
assembly.
2. Using the pull tab, disconnect the display cable from the system board.
3. Remove the four screws (M2.5x5) that secure the display hinges to the system board.
4. Lift the display assembly upwards to separate it from the palm-rest and keyboard assembly.
Installing the display assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

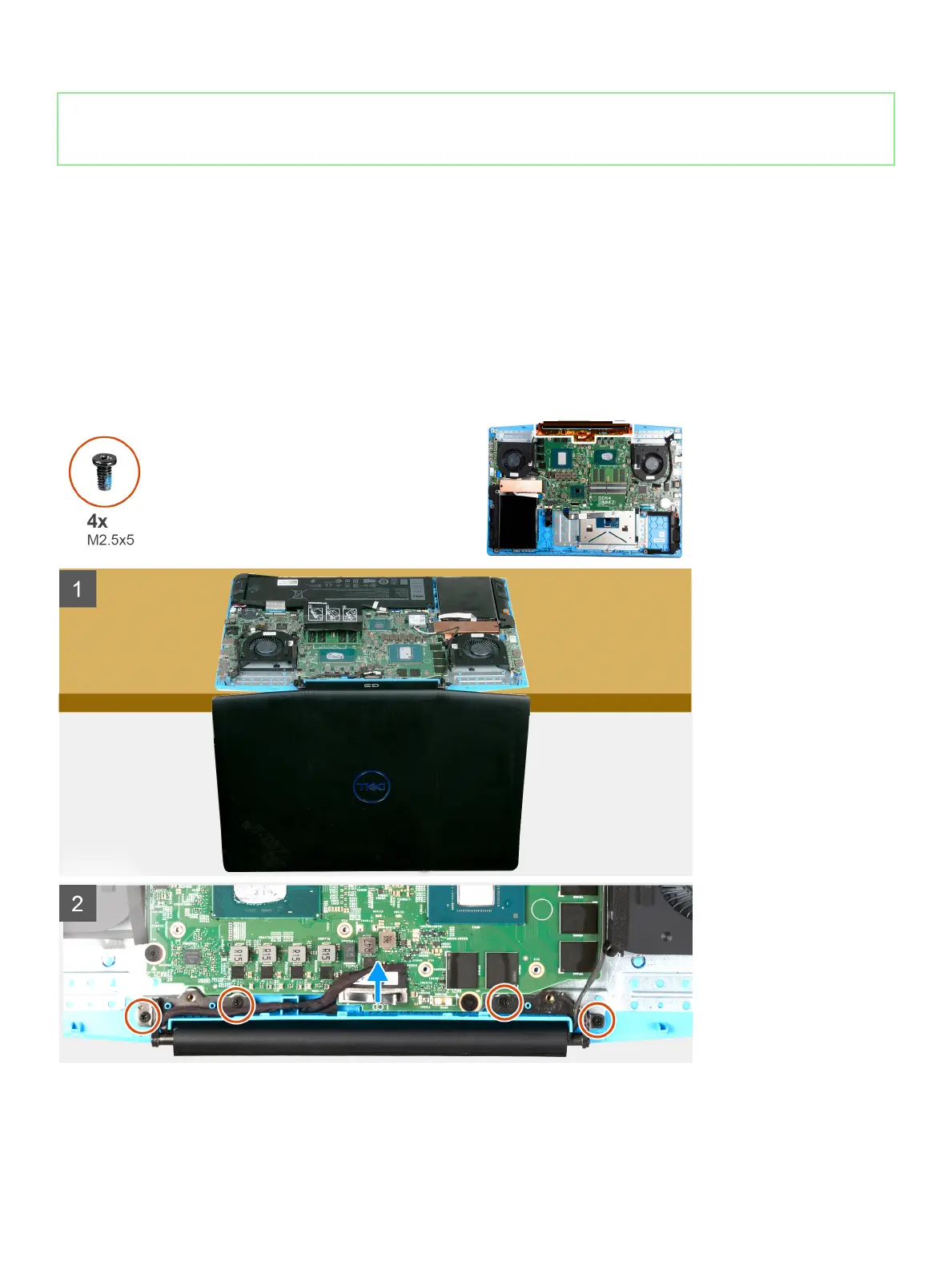

The following image indicates the location of the display assembly and provides a visual representation of the installation
procedure.
Steps
1. Place the palm-rest and keyboard assembly on a flat surface near the edge.
2. Align and place the display assembly perpendicularly onto the palm-rest and keyboard assembly.
3. Install the four screws (M2.5x5) to secure the display hinges to the system board.
Removing and installing components
43
