About this task

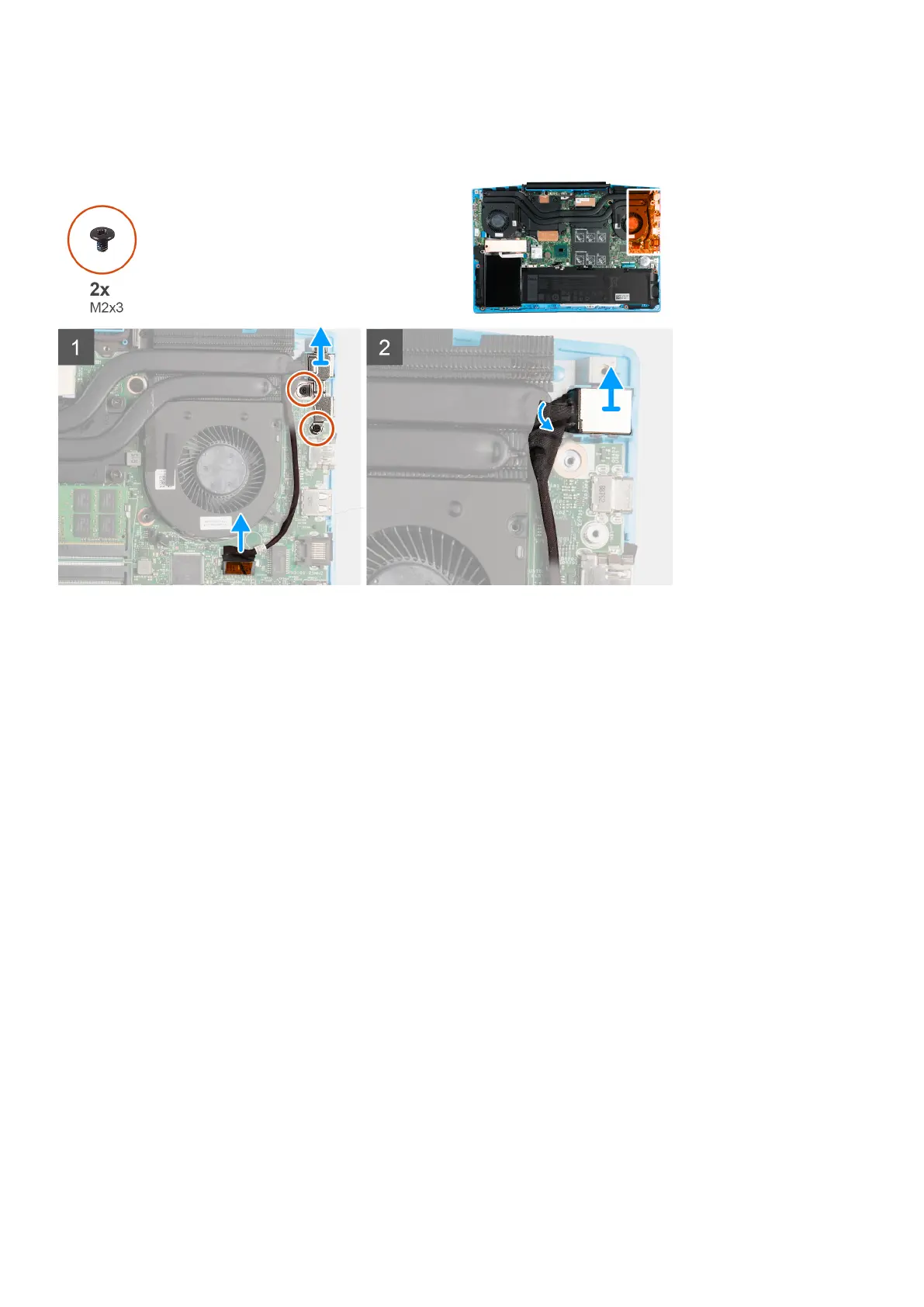

The following image indicates the location of the power-adapter port and provides a visual representation of the removal
procedure.
Steps
1. Remove the two screws (M2x3) on the power-adapter port bracket that secure the power-adapter port to the system
board.
2. Remove the power-adapter port bracket from the system board.
3. Peel the power-adapter port cable from the heat sink.
4. Disconnect the power-adapter port cable from the system board.
5. Lift the power-adapter port, along with its cable, off the palm-rest and keyboard assembly.
Installing the power-adapter port
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the power-adapter port and provides a visual representation of the installation
procedure.
