Configuring Switch Information 359

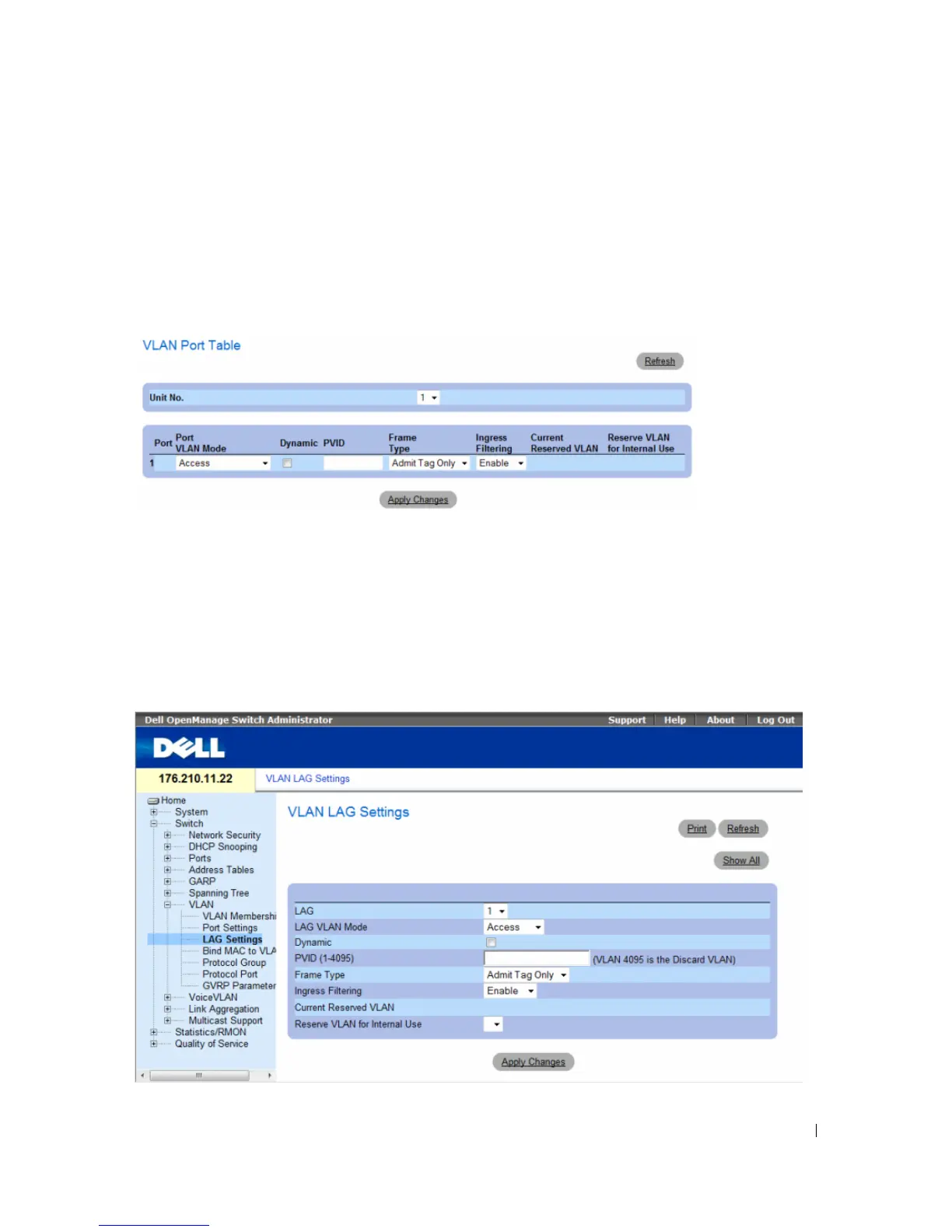

Displaying the VLAN Port Table
1 Open the VLAN Port Settings page.
2 Click Show All.
The VLAN Port Table opens.
Figure 7-49. VLAN Port Table
Defining VLAN LAGs Settings
The VLAN LAG Settings page provides parameters for managing LAGs that are part of a VLAN.
VLANs can either be composed of individual ports or of LAGs. Untagged packets entering the device are
tagged with the LAGs ID specified by the PVID.
To open the VLAN LAG Settings page, click Switch → VLAN → LAG Settings in the tree view.
Figure 7-50. VLAN LAG Settings

Dell PowerConnect 3548 Specifications

General

MAC address table	8000 entries
Maximum data transfer rate	0.1 Gbit/s
Supported data transfer rates	10/100 Mbps
10G support	-
Number of VLANs	256
Flow control support	Yes
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad
Dimensions (WxDxH)	440 x 257 x 43.2 mm
Networking features	Gigabit Ethernet, Fast Ethernet
Authentication method	RADIUS, TACACS+
Connectivity technology	Wired
Switch type	Managed
Switch layer	L2
Data link protocols	Ethernet
Supported network protocols	HTTP, HTTPS/SSL, SSH
Power connector	DC-in jack
SFP/SFP+ slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	48
Product color	Black
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	8000 g
