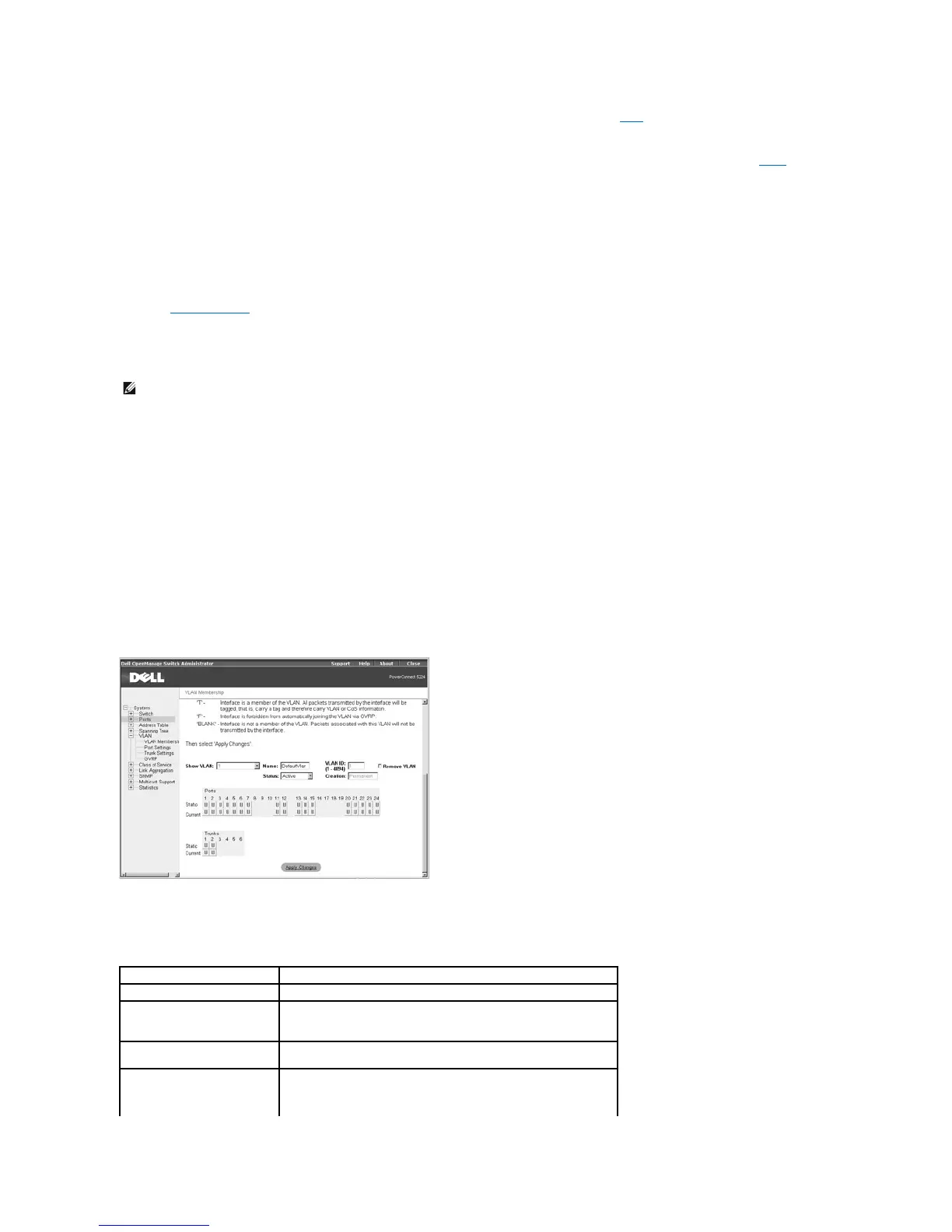

Dell PowerConnect 5224 - VLAN Membership and Port Settings

¡ 'F': Port is forbidden from automatically joining the VLAN through GVRP. For more information, see "GVRP."
¡ 'BLANK': Port is not a member of the VLAN. Packets associated with this VLAN will not be transmitted by the port.
The VLAN tagging option is a standard set by the IEEE to facilitate the spanning of VLANs across multiple switches. For more information, see "VLANs" and the
IEEE Std 802.1Q-1998 Virtual Bridged Local Area Networks.
To save any changes you make in this page, click Apply Changes. If you don't want to save the changes, click Refresh.
Adding VLAN Group
1. Select Add a new VLAN from the Show VLAN drop-down menu.
2. Complete the VLAN Name and VLAN ID fields.
3. Add VLAN members.
See "VLAN Membership" for more information on VLAN members.
4. Click Apply Changes.
Removing VLAN Group
1. Select the VLAN that you want to remove from the Show VLAN drop- down menu.
2. Check the Remove VLAN box for the VLAN that you want to remove.
3. Click Apply Changes.
Adding VLAN Membership
1. Select the VLAN that you want to edit from the Show VLAN drop- down menu.
2. Change the VLAN member by clicking the port icon until the desired state [T (tagged) or U (untagged)] or a blank appears.
3. Click Apply Changes.
Removing VLAN Membership
1. Select the VLAN that you want to edit under the Show VLAN drop- down menu.
2. Change the VLAN member by clicking the port icon until the filed is blank.
3. Click Apply Changes.
CLI Commands
The following table summarizes the equivalent CLI commands for items in the VLAN/VLAN Membership page.
NOTE: If you remove a VLAN group with existing port members, the ports will rejoin the default VLAN in untagged mode.
Command
Usage
vlan database
Allows you to enter VLAN database mode.
vlan vlan-id [name vlan-name]
media ethernet [state {suspend |
active}]
Configures a VLAN.
Use the no form command to restore the default or delete a VLAN.
interface vlan vlan-id
Allows you to enter interface configuration mode for VLANs and to
configure a physical interface.
switchport allowed vlan {add
vlan-list [tagged | untagged] |
remove vlan-list}
Configures untagged and tagged ports.
The parameter vlan-list is the list of VLAN identifiers being added.
Separate nonconsecutive VLAN identifiers with a comma and no spaces;
