Dell POWEREDGE E11S - System Board Connectors

120 Jumpers and Connectors
System Board Connectors

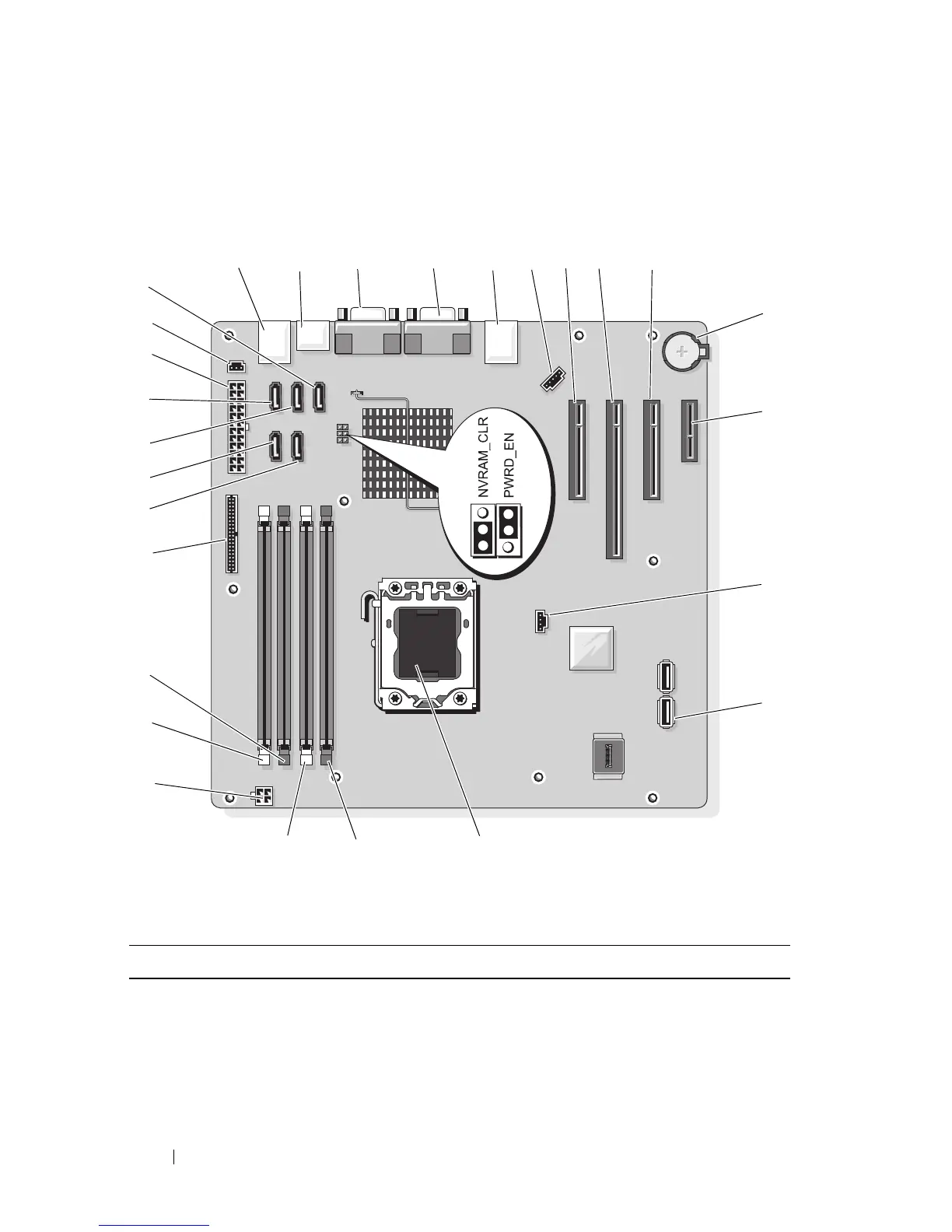

Figure 6-1. System Board Jumpers and Connectors
Table 6-2. System Board Jumpers and Connectors
Item Connector Description
1 USB USB connectors (4)
2 SATA_F eSATA eSATA connector
3 COM Serial connector
4VGA Video connector
25
11
1 2 3
20
4
10
78 9
13
6
12
14
26
16
19
18
21
22
27
24
23
5
17
15
