Installing System Components 67

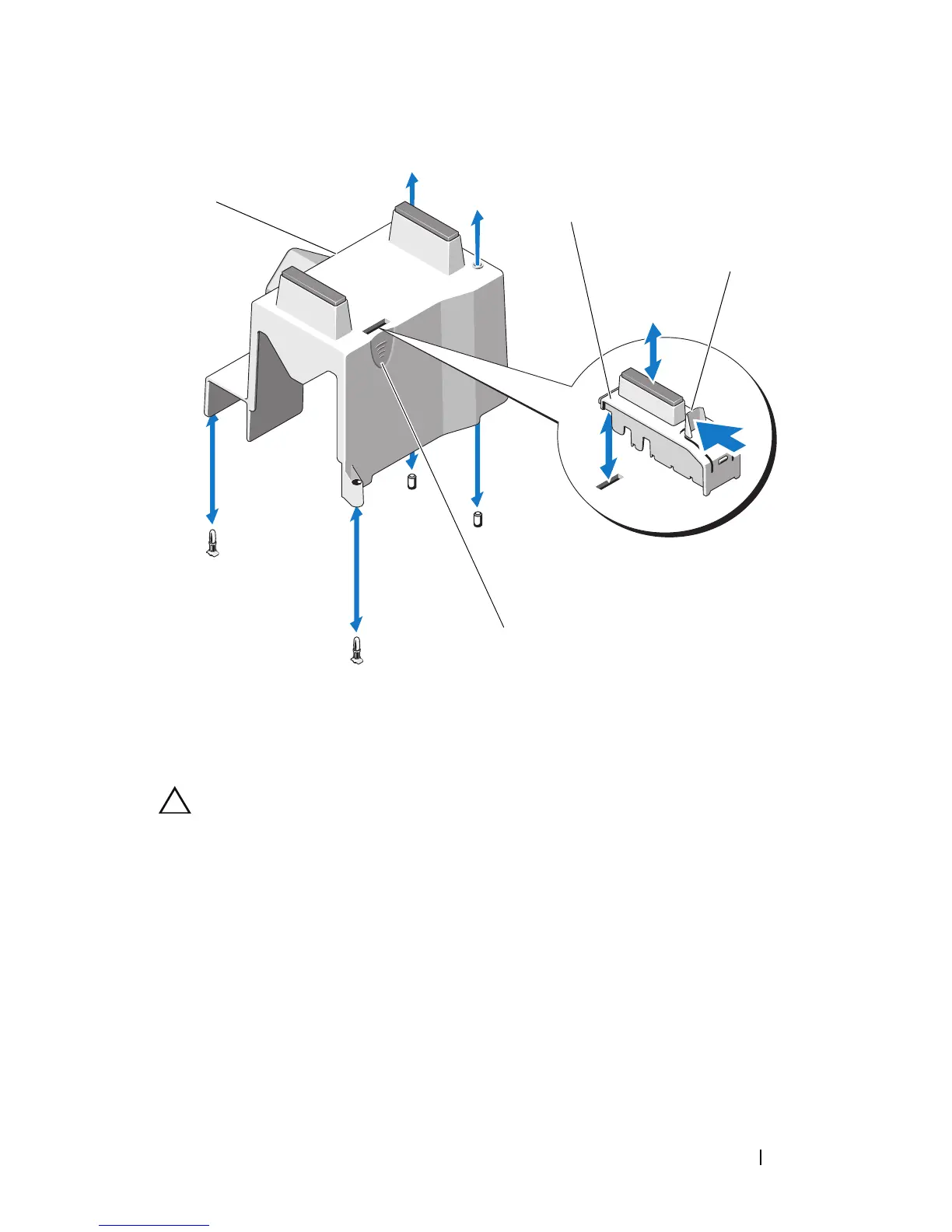

Figure 3-15. Removing and Installing the Cooling Shroud
Installing the Cooling Shroud
CAUTION: Many repairs may only be done by a certified service technician. You
should only perform troubleshooting and simple repairs as authorized in your
product documentation, or as directed by the online or telephone service and
support team. Damage due to servicing that is not authorized by Dell is not covered
by your warranty. Read and follow the safety instructions that came with the
product.
1
Align the holes on the cooling shroud with the alignment guides on the
system fan.
2
Hold the touch points on the cooling shroud and carefully lower the
cooling shroud into the system. Ensure that no cables are under the edges
of the cooling shroud.
1 cooling shroud 2 expansion-card stabilizer
3 release tab 4 cooling shroud touch points (2)
