90 Installing System Components
5
Remove the switch and its attached cable from the system.

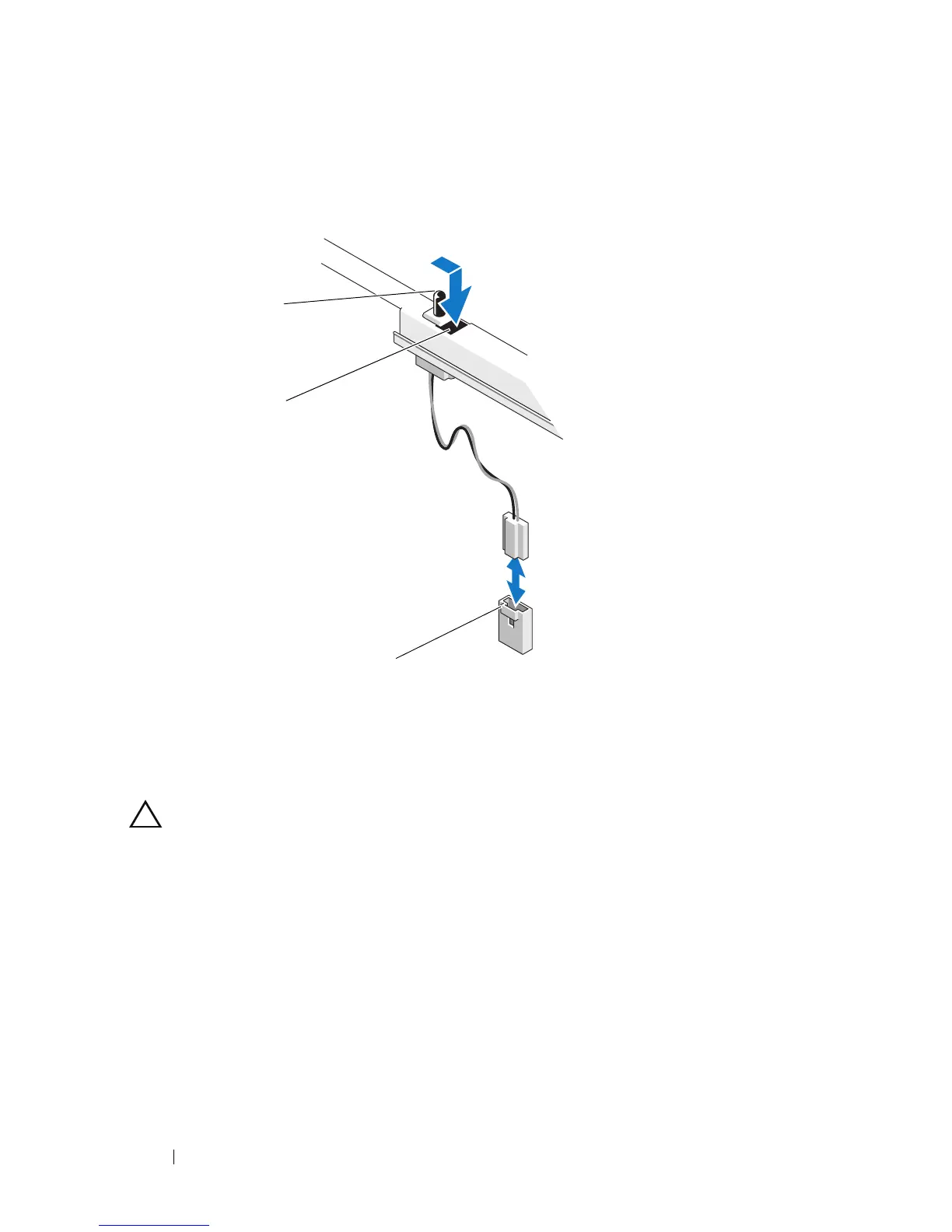

Figure 3-24. Removing and Installing the Chassis Intrusion Switch
Installing the Chassis Intrusion Switch
CAUTION: Many repairs may only be done by a certified service technician. You
should only perform troubleshooting and simple repairs as authorized in your
product documentation, or as directed by the online or telephone service and
support team. Damage due to servicing that is not authorized by Dell is not covered
by your warranty. Read and follow the safety instructions that came with the
product.
1
Align the chassis intrusion switch with the securing bracket notch. See
Figure 3-24.
2
Slide the switch into the securing bracket notch.
3
Connect the switch cable to the INTRUSION connector on the system
board. See Figure 6-1.
1 chassis intrusion switch 2 securing bracket notch
3 INTRUSION connector
