46 Installing System Components

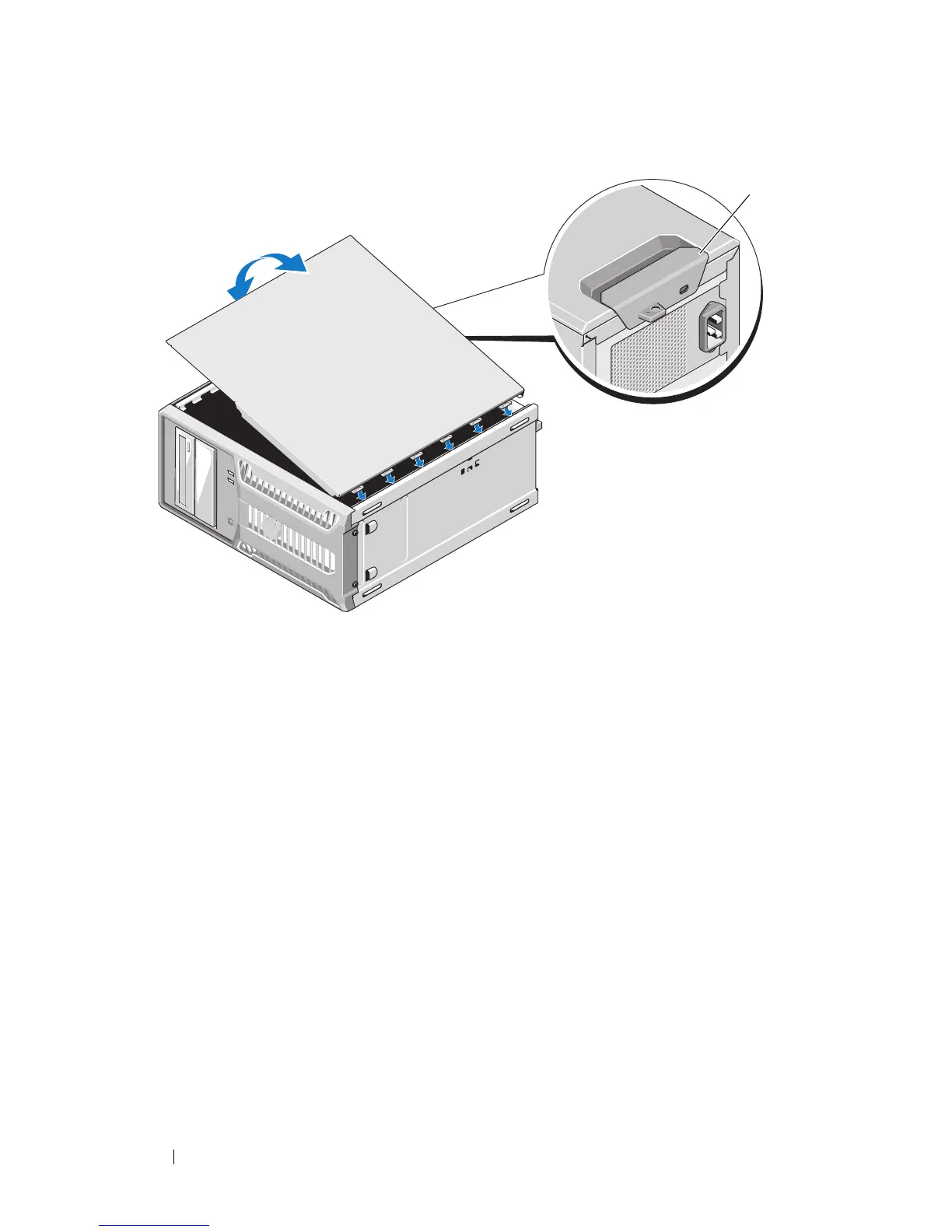

Figure 3-2. Opening and Closing the System
Closing the System
1
Align the cover with the slots on the bottom of the chassis. See Figure 3-2.
2
Press down on the cover until the cover release tab snaps into place.
3
Place the system upright on a flat, stable surface.
4
Reconnect the system to its electrical outlet and turn the system on,
including any attached peripherals.
1 release tab
