54 Installing System Components

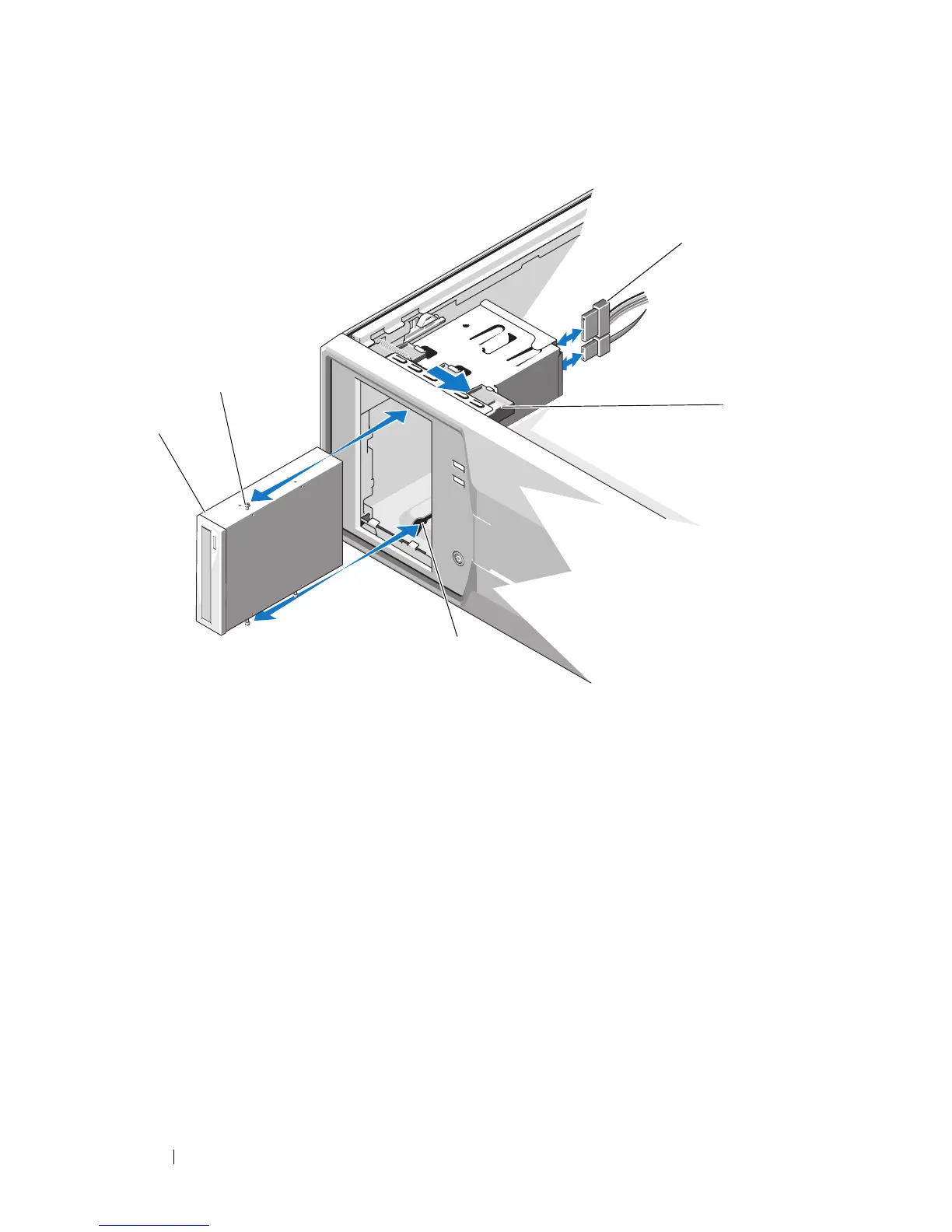

Figure 3-7. Removing and Installing an Optical Drive (SATA Connection)
6
If you are installing another drive in the bay, see "Installing an Optical or
Tape Drive" on page 55.
7
If the drive is being permanently removed, install an insert on the front
bezel. See "Installing Front-Bezel Insert" on page 50.
8
Replace the front bezel. See "Installing the Front Bezel" on page 48.
9
Close the system. See "Closing the System" on page 46.
1 power/data cable 2 drive release latch
3 drive bay screw slots 4 optical drive
5 optical drive shoulder screws (3)
