58 Installing System Components

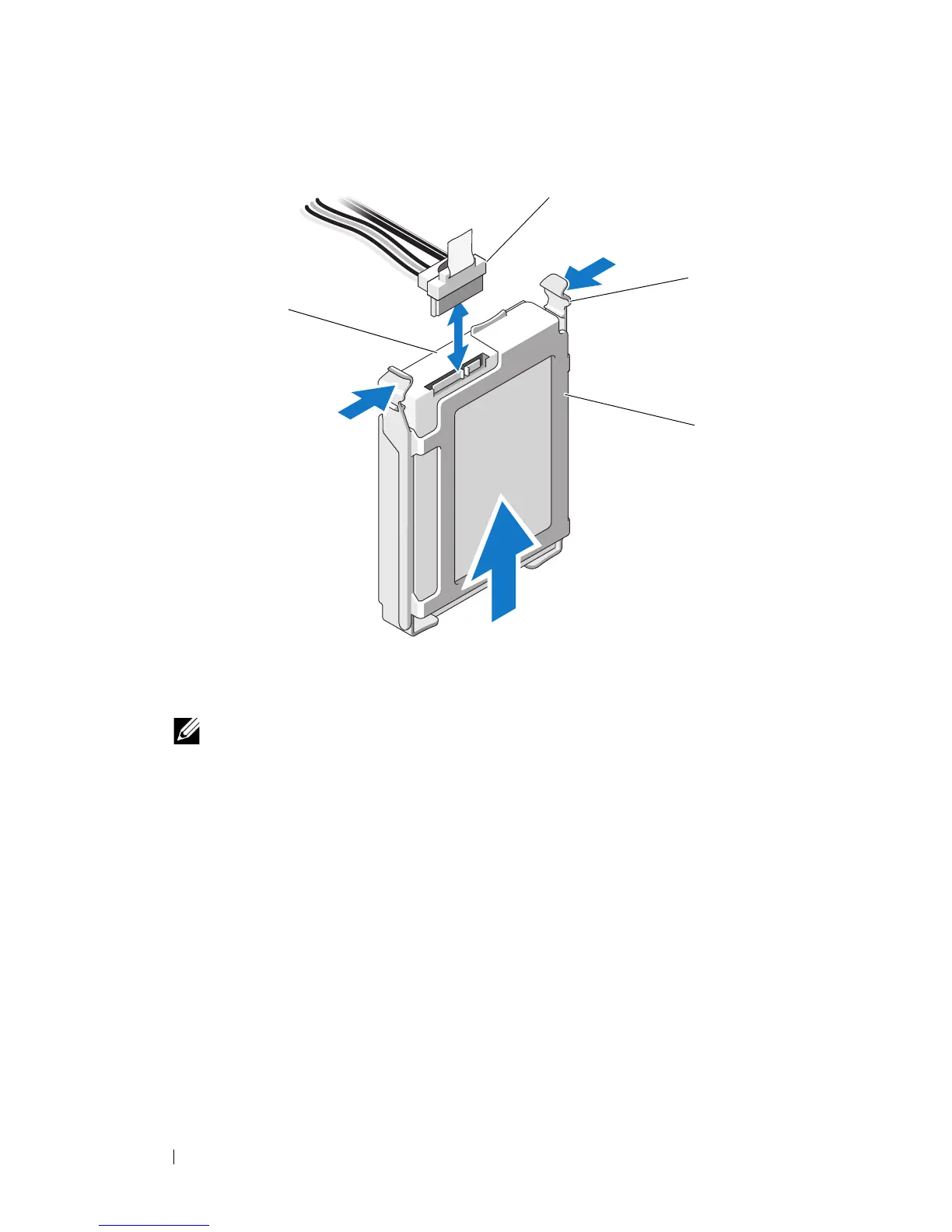

Figure 3-9. Removing and Installing a 3.5-Inch Hard Drive
NOTE: If you are not replacing the hard drive, remove the drive from the drive
bracket (see Figure 3-11) and insert the empty bracket back into the drive bay.
5 Detach the hard-drive bracket from the hard drive by pushing out at the
edges of the bracket and removing the hard drive. See
Figure 3-11 .
6 Close the system. See "Closing the System" on page 46.
1 hard drive 2 power/data cable
3 tabs (2) 4 hard drive bracket
2
4
3
1
