Dell PowerEdge R450 User Manual

Air shroud
Removing the air shroud
Prerequisites
CAUTION: Never operate your system with the air shroud removed. The system may get overheated quickly,
resulting in shutdown of the system and loss of data.
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Steps

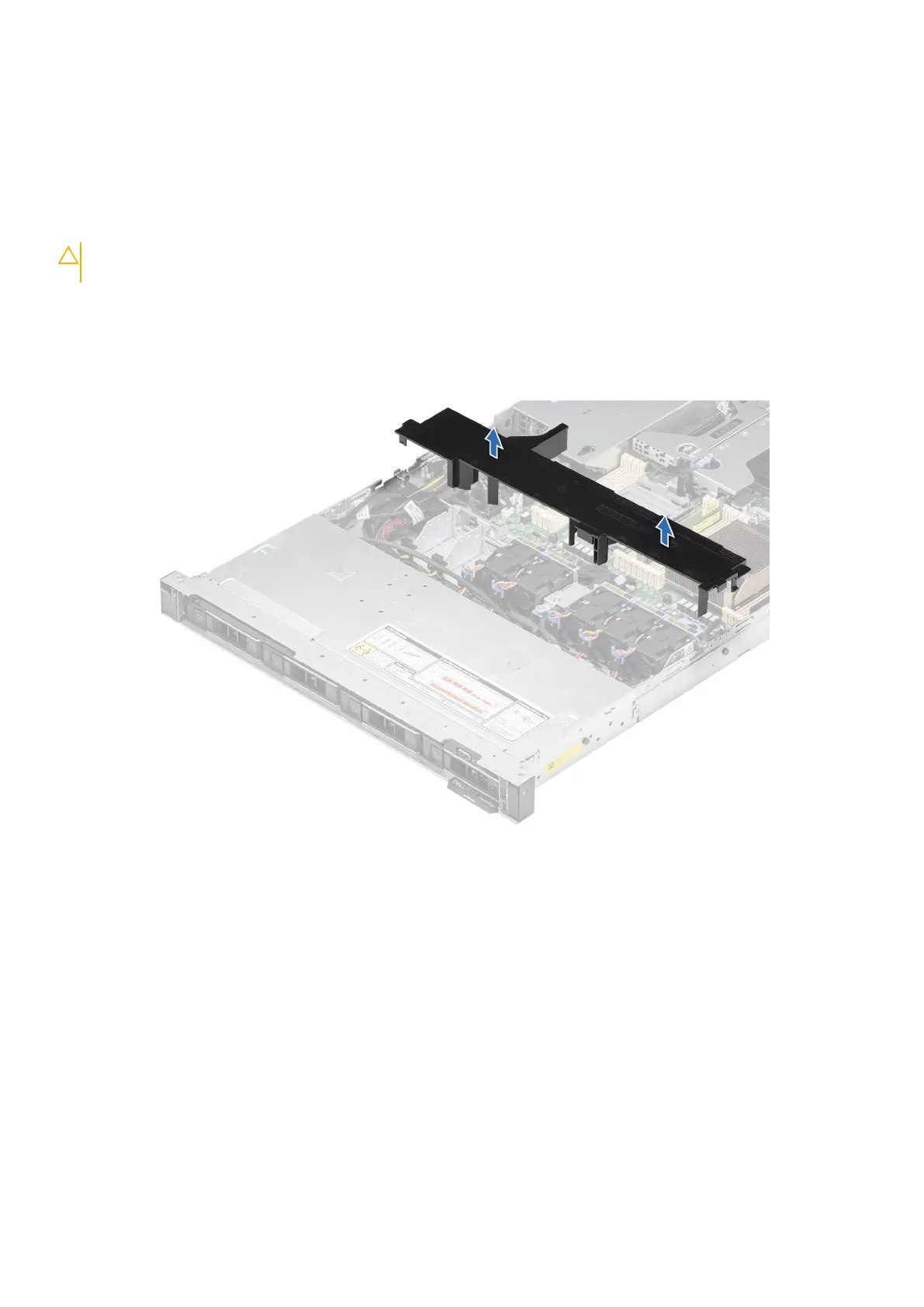

Hold the air shroud at both ends and lift the air shroud out of the system.
Figure 21. Removing the air shroud
Next steps
Replace the air shroud.
Installing the air shroud
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Steps
1. Align the slot on the air shroud with the standoff on the chassis.
2. Lower the air shroud into the system until it is firmly seated.
Installing and removing system components
33

Dell PowerEdge R450 Specifications

General

Maximum Processors	2
Maximum Memory	1 TB
Form Factor	1U Rack
Processor	Intel Xeon Scalable (3rd Gen)
CPU	Intel Xeon Scalable Processors
Memory	DDR4
RAM	DDR4
Storage	Up to 4 x 3.5" drives
RAID Support	PERC H755
Network	1 x 1GbE LOM
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
