Expansion card installation guidelines

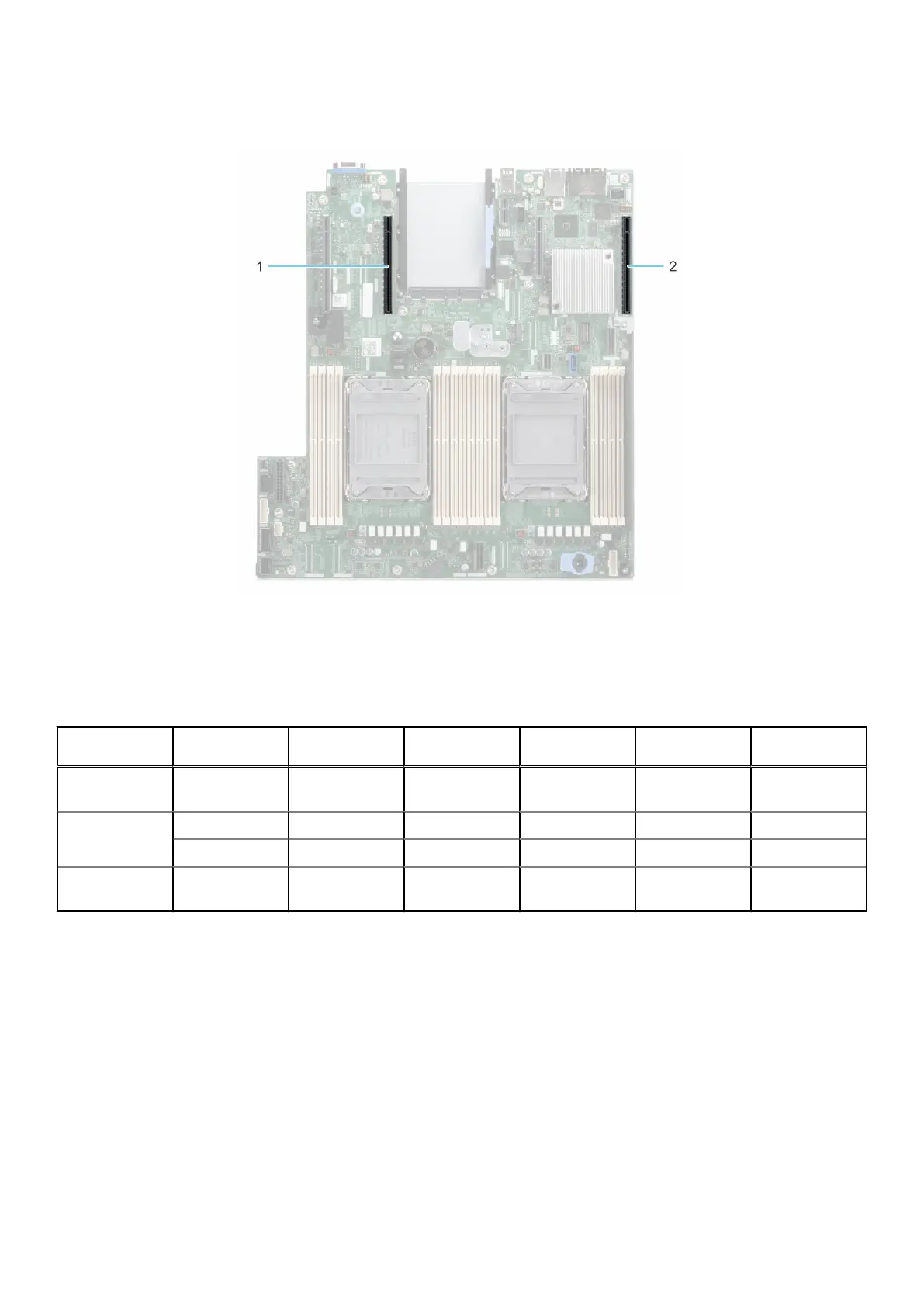

Figure 57. Expansion card slot connectors
1. Riser 2C (Slot 3)
2. Riser 1 (Slot 1)
The following table describes the expansion card riser configurations:
Table 18. Expansion card riser configurations
Configurations Expansion card
risers
PCIe Slots Controlling
processor
Height Length Slot width
Config0. with 1x
LP
R1 1 Processor 1 Low Profile Half length x16
Config1. with 2x
LP
R1 1 Processor 1 Low Profile Half length x16
R2c 3 Processor 2 Low Profile Half length x16
Config2. with 0x
LP
NA NA NA NA NA NA
Installing and removing system components 63
