Next steps
1. If applicable, Install the M,2 BOSS riser.
2. Follow the procedure listed in After working inside your system.
Removing the M.2 SSD module
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Removing the M.2 BOSS riser.
4. Remove the M.2 BOSS card from the M.2 BOSS riser.
Steps
1. Using the Phillips #1 screwdriver, remove the screws securing the M.2 SSD module to the BOSS card.
2. Pull the M.2 SSD module to disconnect from the connector on the M.2 BOSS card.

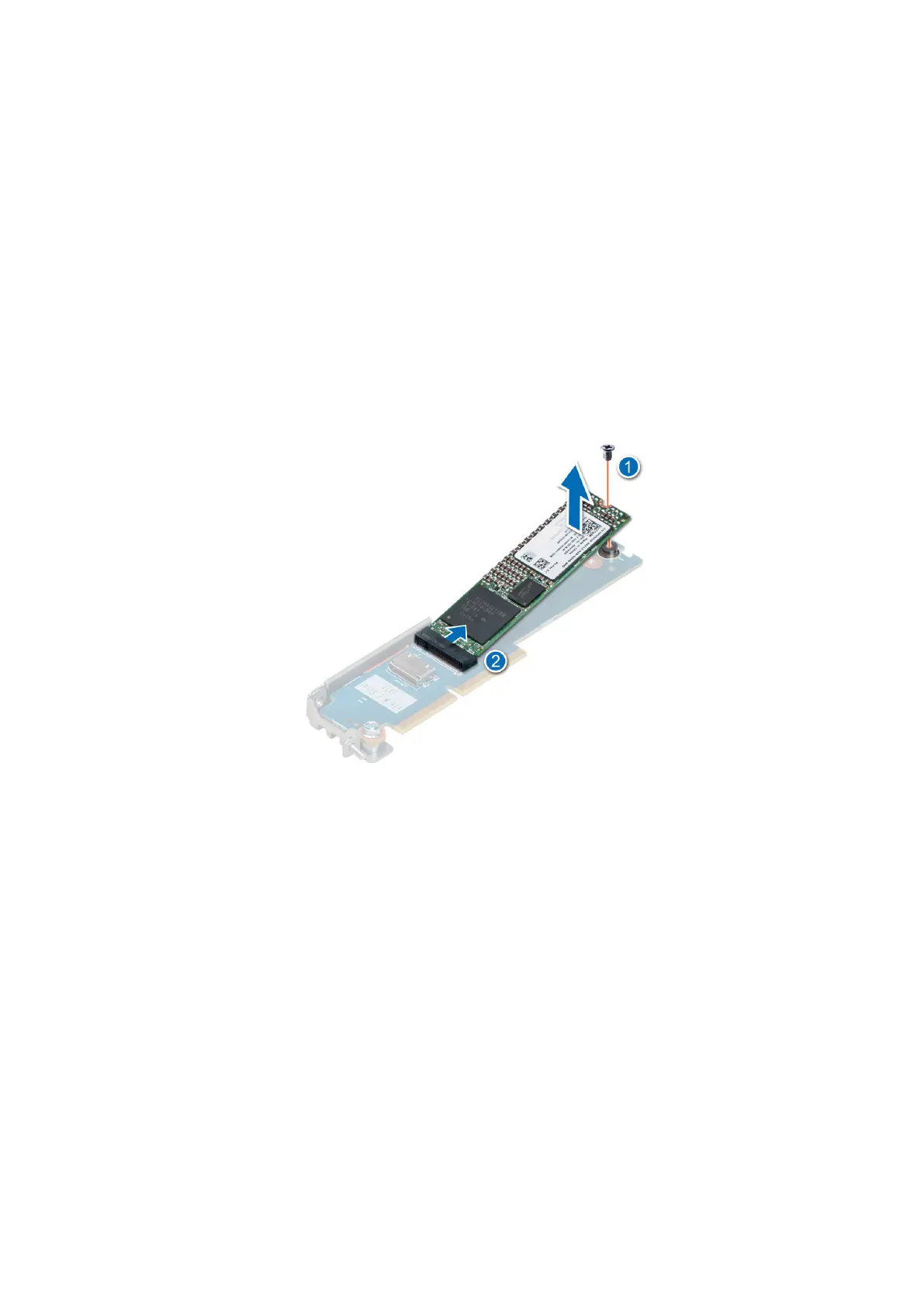

Figure 80. Removing the M.2 SSD module
Next steps
1. If applicable, Install the M.2 BOSS card into the M.2 BOSS riser.
2. If applicable, Install the M,2 BOSS riser.
Installing the M.2 SSD module
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Removing the M.2 BOSS riser.
4. Remove the M.2 BOSS card from the M.2 BOSS riser.
Steps
1. Align the M.2 SSD module at angle with the connector on the M.2 BOSS card.
2. Insert the M.2 SSD module until it is firmly seated in M.2 BOSS card connector.
Installing and removing system components
79
