Installing and Configuring Hardware 65

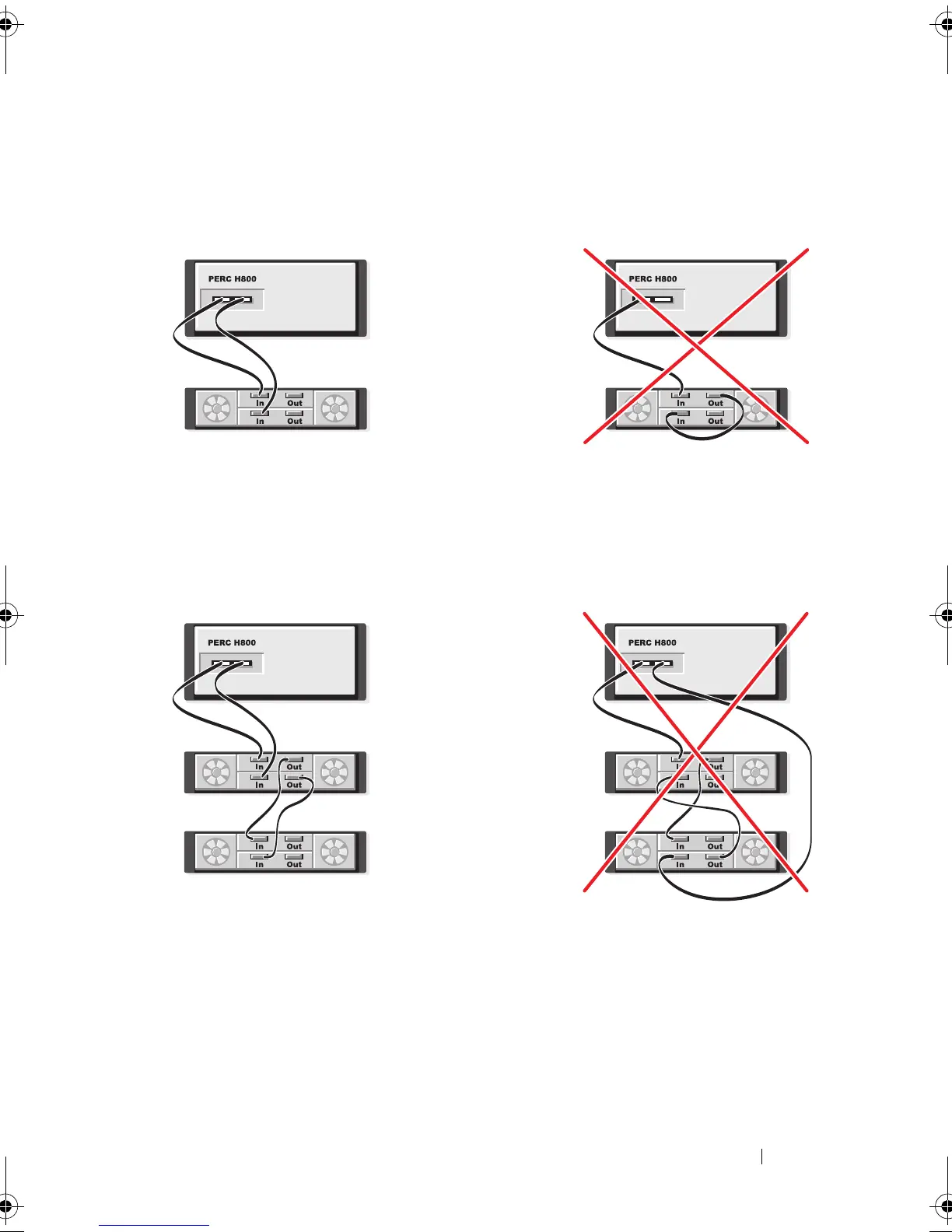

Figure 4-18 displays redundant path storage configuration with one enclosure.
Figure 4-18. Redundant Path Support Configuration With One Enclosure
Figure 4-19 displays redundant path storage configuration with two
enclosures.
Figure 4-19. Redundant Path Support Configuration With Two Enclosures
Storage
Storage
Server
Server
Storage
Storage
Storage
Storage
Server Server
