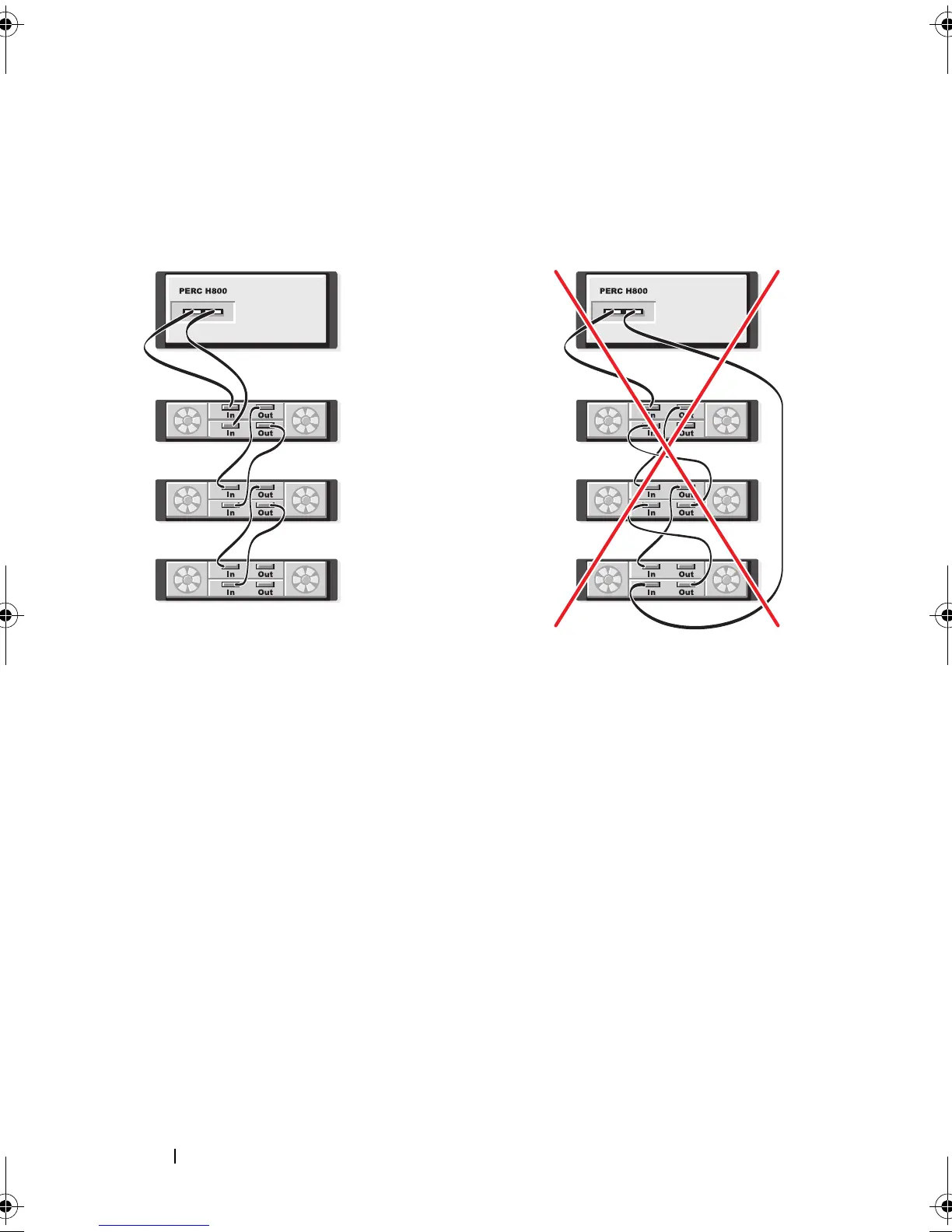

Figure 4-20 displays redundant path storage configuration with
three enclosures.
Figure 4-20. Redundant Path Support Configuration With Three Enclosures
Figure 4-21 displays redundant path storage configuration with four
enclosures. A single PERC H800 adapter can support up to four disk storage
enclosures in a redundant path configuration.
