Installing System Components 97

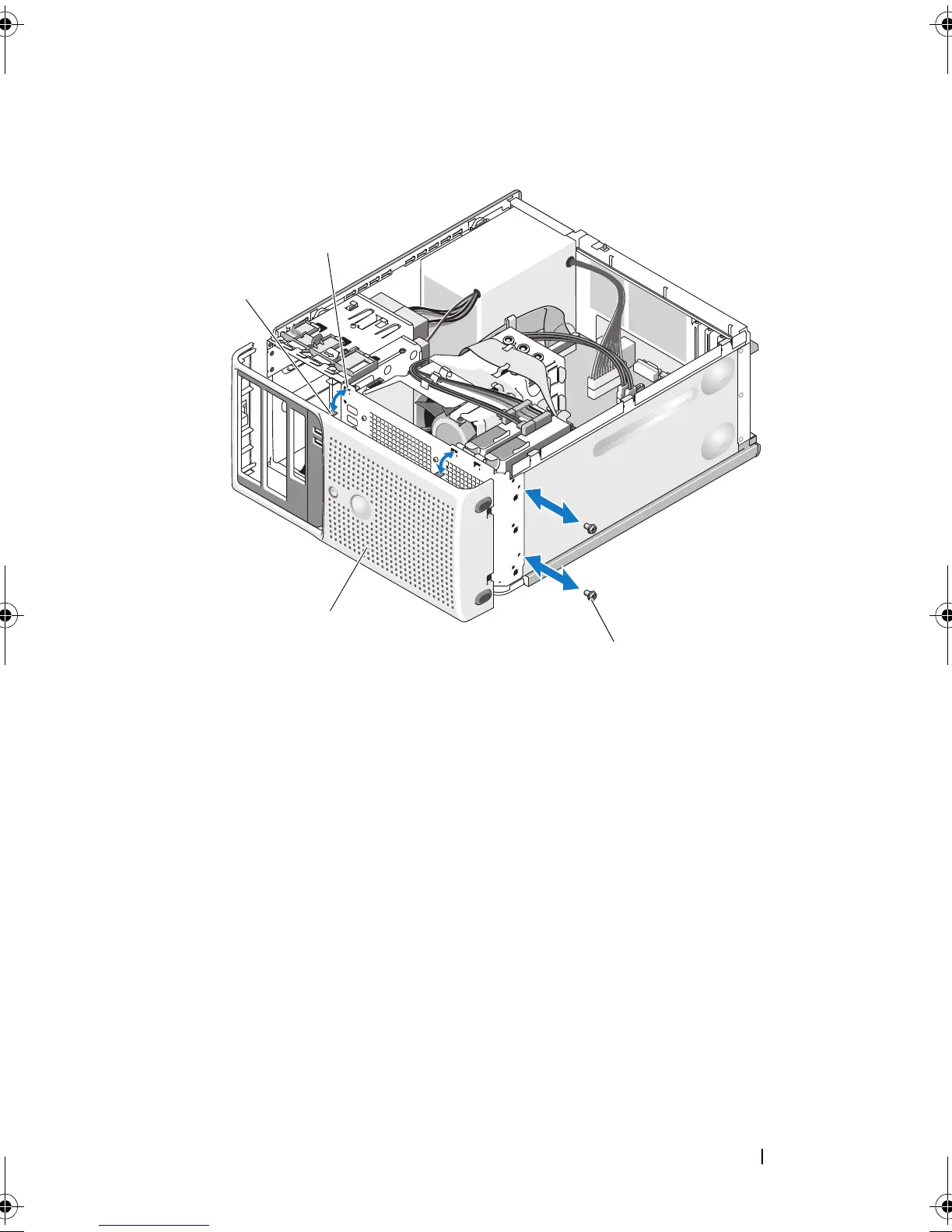

Figure 3-29. Removing the Bezel
Replacing the Bezel
1
Align the bezel with the chassis frame and slide it into position.
2
Secure the alignment tabs into their alignment slots.
3
Attach the two bezel release screws to secure the bezel to the system
chassis. See Figure 3-29.
4
Replace the processor fan. See "Replacing the Cooling Fans" on page 87.
5
Reinstall the heat sink and shroud assembly. See "Replacing the Processor"
on page 83.
6
Close the system. See "Closing the System" on page 47.
7
Reconnect the system to the electrical outlet, and turn on the system.
1 alignment slot 2 bezel release screws (2)
3 bezel 4 alignment tab
