Dell PowerEdge T320 User Manual

5. Disconnect all cables from the system board.
CAUTION: Take care not to damage the system identification button while removing the system board from
the chassis.
6. Remove the 11 screws that secure the system board to the chassis.
7. Grasp the system-board holders and slide the system board towards the front of the system.
CAUTION: Do not lift the system board assembly by grasping a memory module, processor, or other
components.

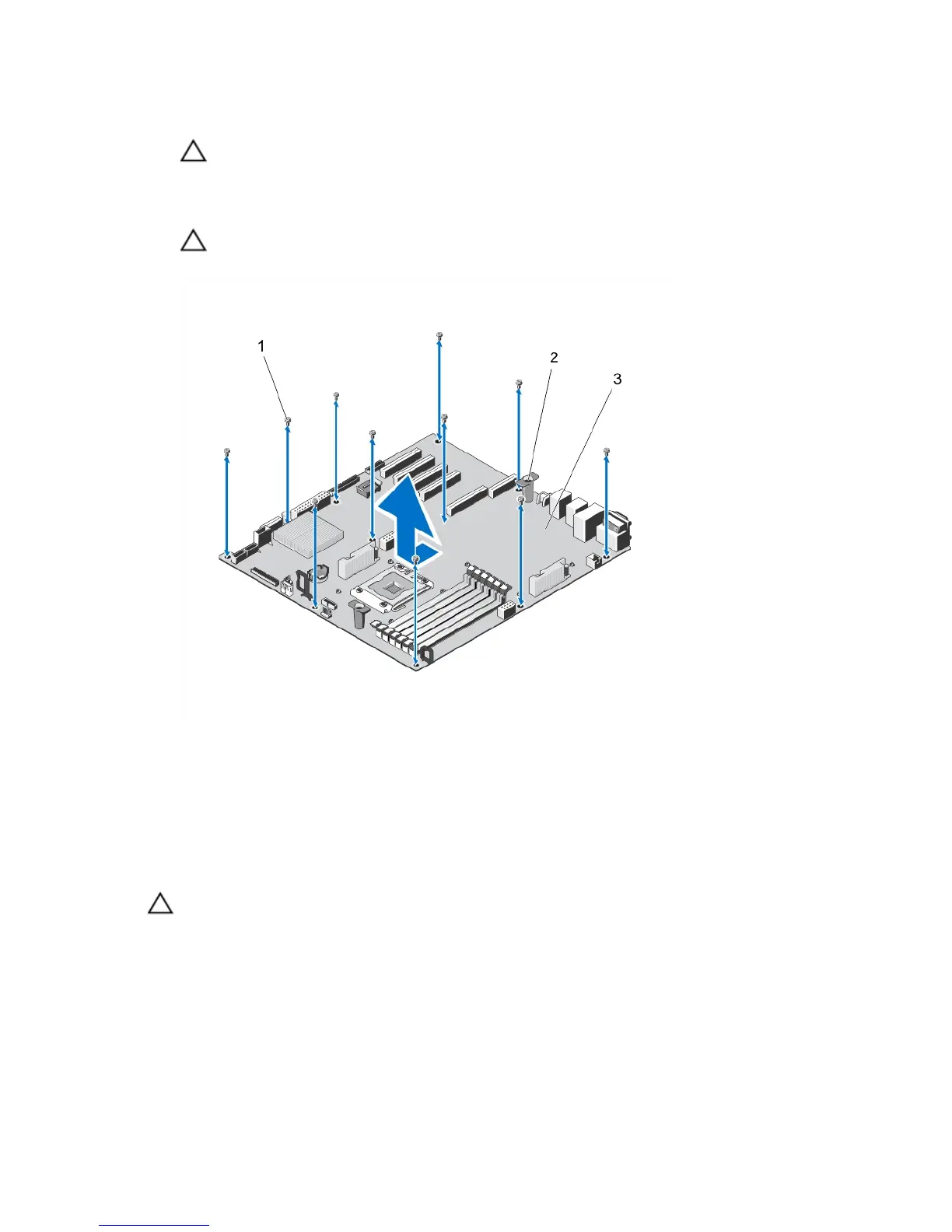

Figure 68. Removing the System Board
1. screws (11)
2. system-board holders (2)
3. system board
Installing The System Board
CAUTION: Many repairs may only be done by a certified service technician. You should only perform
troubleshooting and simple repairs as authorized in your product documentation, or as directed by the online or
telephone service and support team. Damage due to servicing that is not authorized by Dell is not covered by your
warranty. Read and follow the safety instructions that came with the product.
122

Dell PowerEdge T320 Specifications

General

Power supply input frequency	50 - 60 Hz
Number of main power supplies	1
Redundant power supply (RPS) support	Yes
Chassis type	Tower (5U)
HDD size	- \
HDD interface	-
Optical drive type	No
Supported HDD sizes	3.5 \
Total storage capacity	0 GB
Maximum storage capacity	32 TB
Number of HDDs installed	0
Number of HDDs supported	8
Supported storage drive interfaces	SAS, Serial ATA III
Compatible operating systems	Microsoft Windows Server 2012 Microsoft Windows Server 2012 Essentials Microsoft Windows Server 2008 R2 SP1, x64 (with Hyper-V version 2) Novell SUSE Linux Enterprise Server Red Hat Enterprise Linux Citrix XenServer VMware vSphere ESX and ESXi Red Hat Enterprise Virtualization
Memory slots	6x DIMM
Internal memory	4 GB
Memory clock speed	1600 MHz
Internal memory type	DDR3-SDRAM
Maximum internal memory	192 GB
Memory layout (slots x size)	1 x 4 GB
BIOS type	UEFI
Performance management	IPMI 2.0, Dell OpenManage
Trusted Platform Module (TPM) version	1.2
Tcase	76 °C
Bus type	QPI
Stepping	S1
Scalability	2S
Processor code	SR1AK
Processor cache	10 MB
Processor cores	4
Processor model	E5-2407V2
System bus rate	6.4 GT/s
Processor series	Intel Xeon E5-2400 v2
Processor socket	LGA 1356 (Socket B2)
Processor codename	Ivy Bridge EN
Motherboard chipset	Intel® C602
Processor frequency	2.4 GHz
Processor cache type	Smart Cache
Processor lithography	22 nm
Processor manufacturer	Intel
Processor package size	45 x 42.5 mm
Processor front side bus	- MHz
Processor boost frequency	The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.
Processor operating modes	64-bit
PCI Express configurations	x4, x8, x16
Supported instruction sets	AVX
Thermal Design Power (TDP)	80 W
Compatible processor series	Intel® Pentium®
Maximum number of PCI Express lanes	24
Memory channels supported by processor	Triple
Memory clock speeds supported by processor	800, 1066, 1333 MHz
Memory bandwidth supported by processor (max)	32 GB/s
Maximum internal memory supported by processor	384 GB
Display	LCD
Graphics card	G200
Graphics card family	Matrox
Maximum graphics card memory	16 MB
LAN controller	Broadcom 5720
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	2
Sustainability certificates	ENERGY STAR
PCI Express slots version	3.0
Cables included	AC
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 12000 m
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 80 %
Processor ARK ID	75782
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	0.00

Weight and Dimensions

Depth	542.2 mm
Width	218 mm
Height	430.3 mm
Weight	29550 g
