Dell PowerEdge T320 - System Board Connectors

System Board Connectors

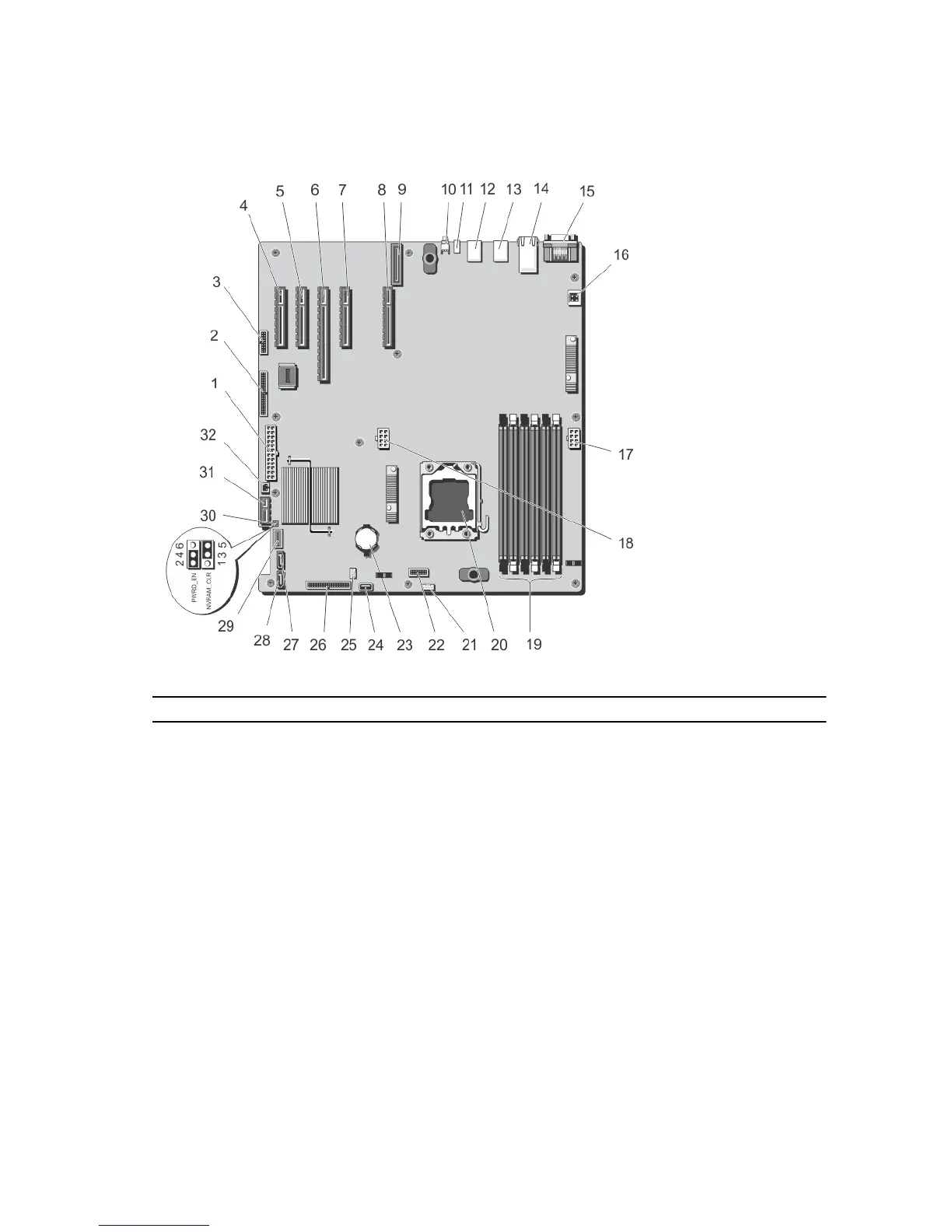

Figure 71. System Board Jumpers and Connectors
Item Connector Description
1 PWR_CONN/P1 Power connector
2 CTRL PNL Control panel interface connector
3 FRONT VGA Video connector
4 SLOT1 PCIE-G2-X4(CPH) PCIe card connector 1
5 SLOT2 PCIE-G2-X1(CPH) PCIe card connector 2
6 SLOT3 PCIE-G3-X16(CPU1) PCIe card connector 3
7 SLOT4 PCIE-G3-X4(CPU1) PCIe card connector 4
8 SLOT6 PCIE-G3-X4(CPU1) PCIe card connector 6
9 iDRAC_ENT iDRAC connector
10 ID_BTN System identification button
11 CMA_JACK System identification connector
12 USB4 top/USB5/USB6 BOT USB connector
