Dell PowerEdge T320 - Indicator Codes and Patterns

NIC Indicator Codes

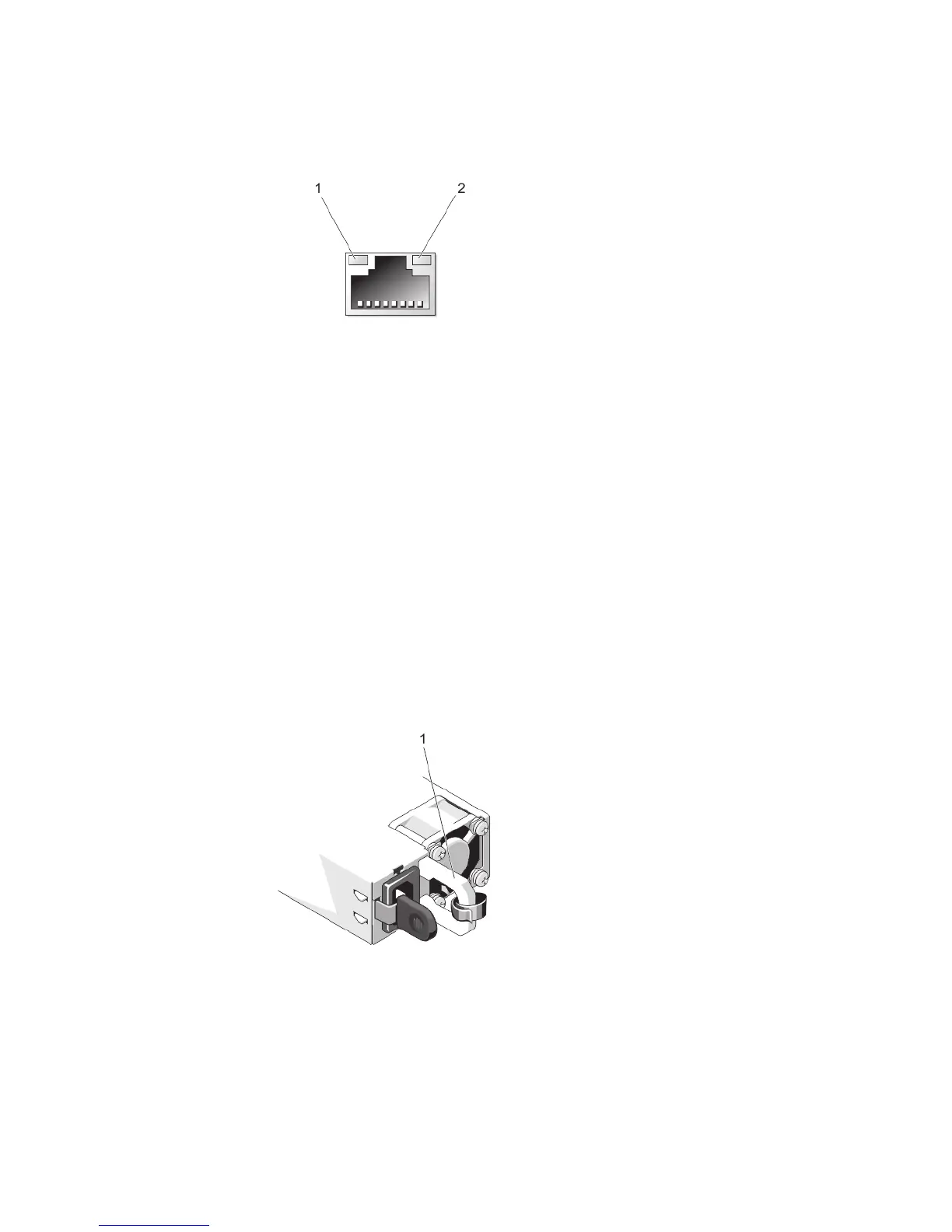

Figure 8. NIC Indicator
1. link indicator
2. activity indicator
Indicator Indicator Code
Link and activity
indicators are off
The NIC is not connected to the network.
Link indicator is
green
The NIC is connected to a valid network at its maximum port speed (1 Gbps or 10 Gbps).
Link indicator is
amber
The NIC is connected to a valid network at less than its maximum port speed.
Activity indicator is
blinking green
Network data is being sent or received.
Power Indicator Codes For Redundant Power Supply
Each redundant AC power supply has an illuminated translucent handle to show whether power is present or whether a
power fault has occurred.
Figure 9. Redundant AC Power Supply Status Indicator
1. AC power supply status handle
