Dell poweredge VRTX - Page 17

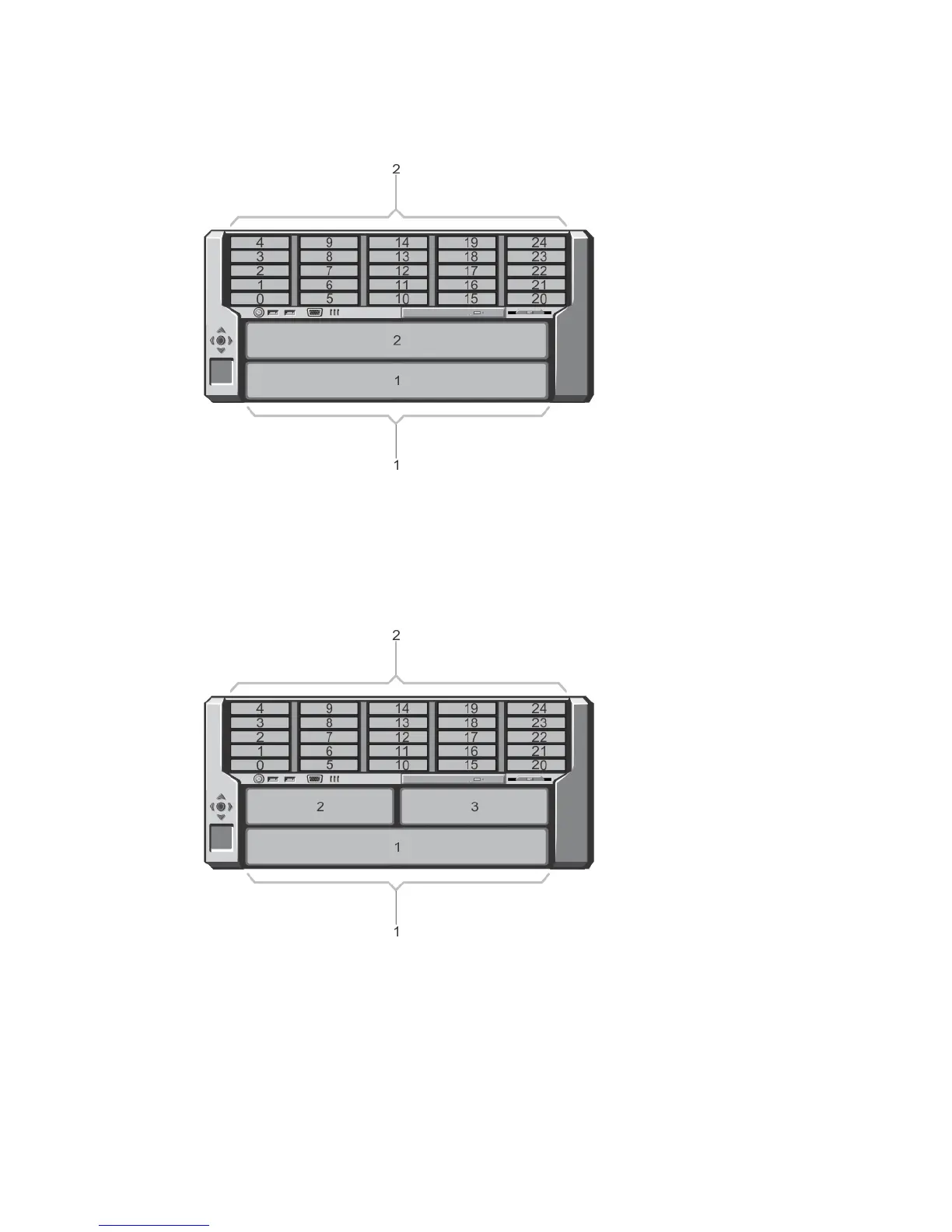

Figure 9. Full-Height Server Module and Hard-Drive Numbering — 2.5 Inch Hard-Drive Chassis
1. server module numbering 2. hard-drive numbering
Figure 10. Server Module (Half-Height and Full-Height Server Modules) and Hard-Drive Numbering — 2.5 Inch Hard-Drive
Chassis
