Dell poweredge VRTX - Removing a Hard Drive from a Hard-Drive Carrier

Removing A Hard Drive From A Hard-Drive Carrier
1. Remove the screws from the slide rails on the hard-drive carrier.
For the 2.5 inch hard drive, turn the hard-drive carrier upside down, and remove the screws from the side rails on
the hard-drive carrier.
2. Lift the hard drive out of the hard-drive carrier.

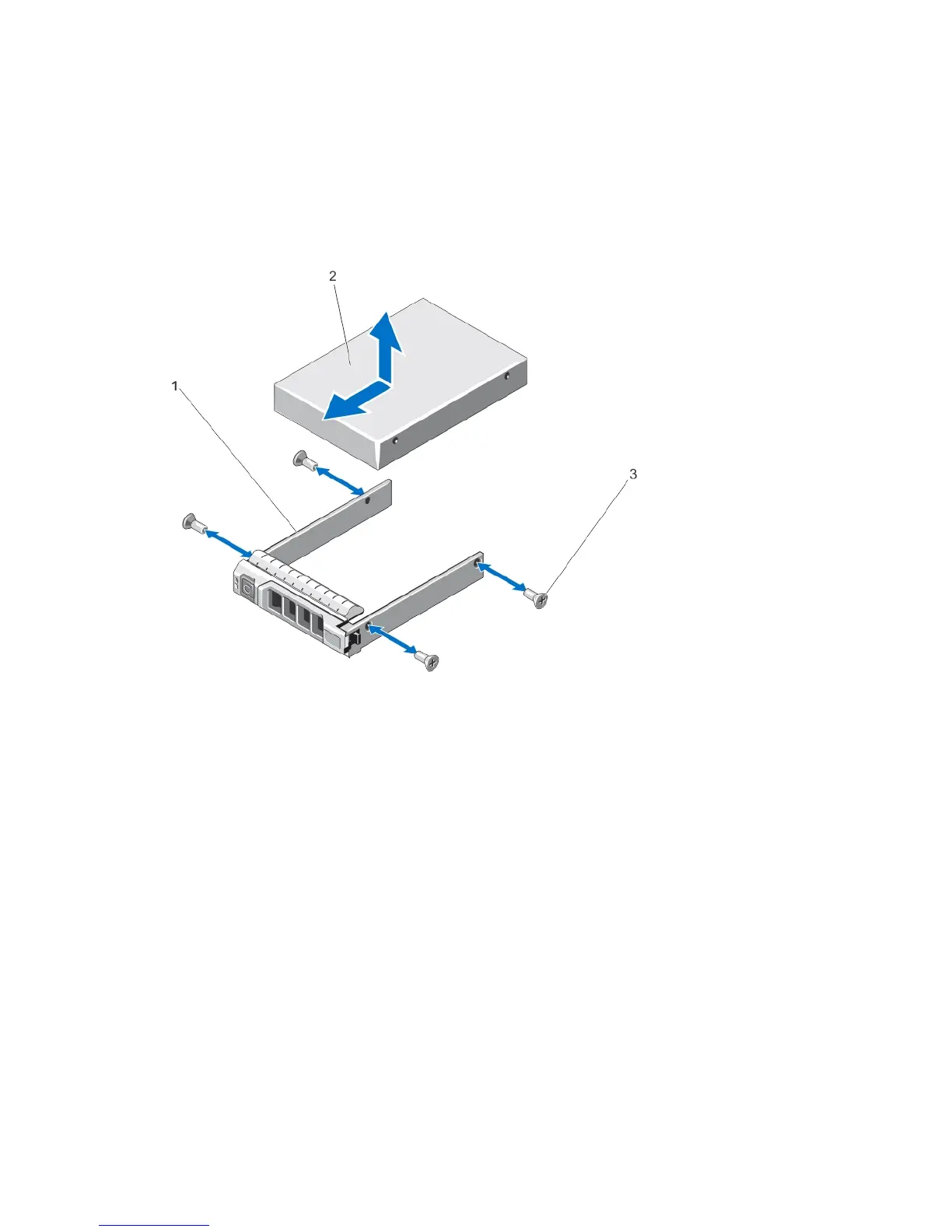

Figure 34. Removing and Installing a 2.5 Inch Hard Drive Into a Hard-Drive Carrier
1. hard-drive carrier 2. hard drive
3. screws (4)
53
