Drive-Status
Indicator Pattern
Condition
Blinks green two
times per second
Identifying drive or preparing for removal
Off Drive ready for insertion or removal
NOTE: The drive status indicator remains off until all hard drives are initialized after the
system is turned on. Drives are not ready for insertion or removal during this time.
Blinks green, amber,
and off
Predicted drive failure
Blinks amber four
times per second
Drive failed
Blinks green slowly Drive rebuilding
Steady green Drive online
Blinks green three
seconds, amber three
seconds, and off six
seconds
Rebuild aborted
LCD Module
You can use the LCD panel on the enclosure chassis to perform configuration and diagnostics, and to obtain status
information about the chassis and its contents.

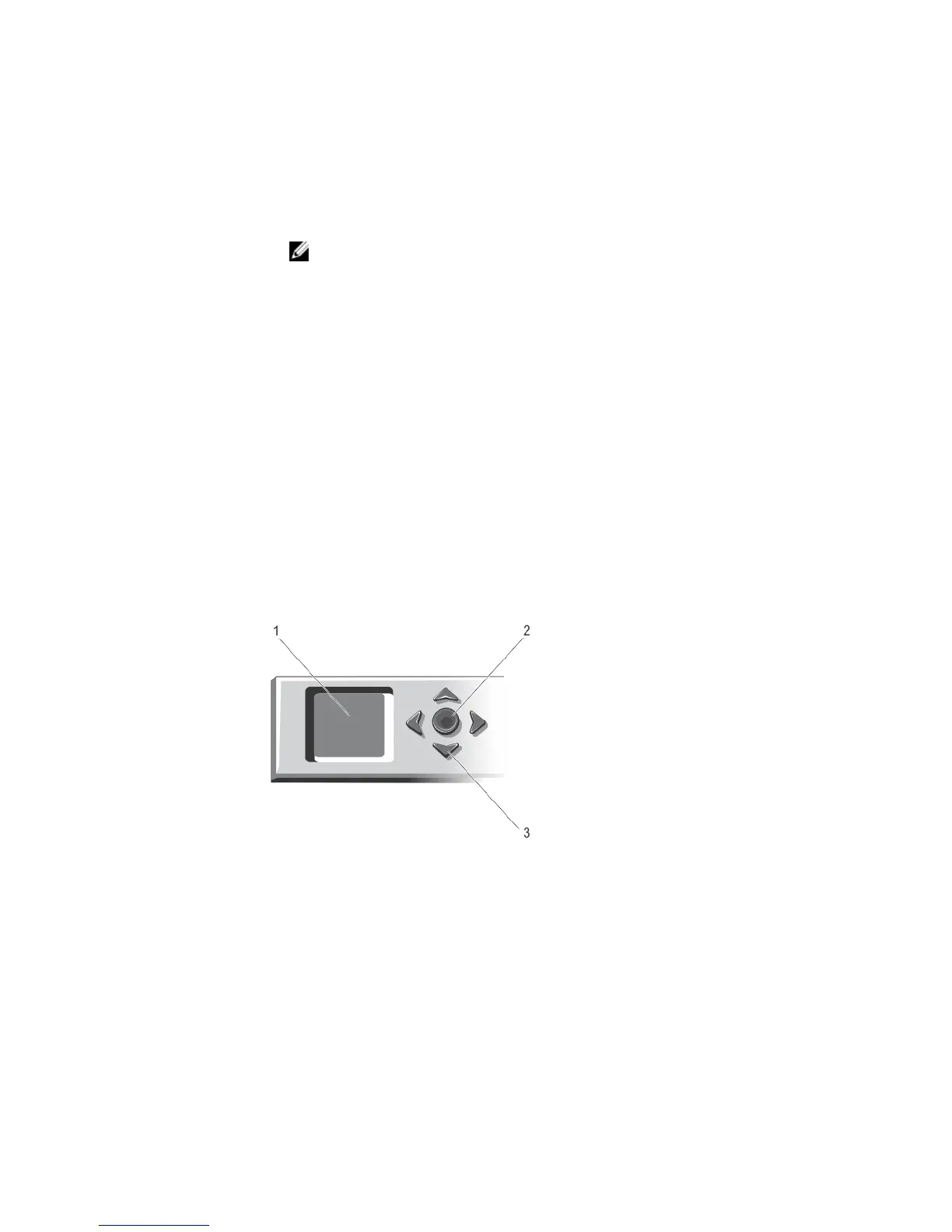

Figure 17. LCD Display
1. LCD screen 2. selection ("check") button
3. scroll buttons (4)
LCD Module Features
The primary function of the LCD module is to provide real-time information on the health and status of the modules in the
enclosure.
LCD module features include:
• A deployment setup that allows you to configure the CMC network settings during initial system setup.
23
