5. To remove the server module partition between Slots 1 and 3:
a) Hold the release tab on the server module partition and pull it out from the chassis wall to disengage the
locking tab from the slot on the chassis wall.
b) Holding the release tab, pull the partition toward the front of the system until it stops sliding.
The tabs on the partition move to unlock position.
c) Rotate the partition upward in the counter-clockwise direction to disengage the tabs from the slots on the metal
partition.
d) Slide the partition out from the system, and save for future use.

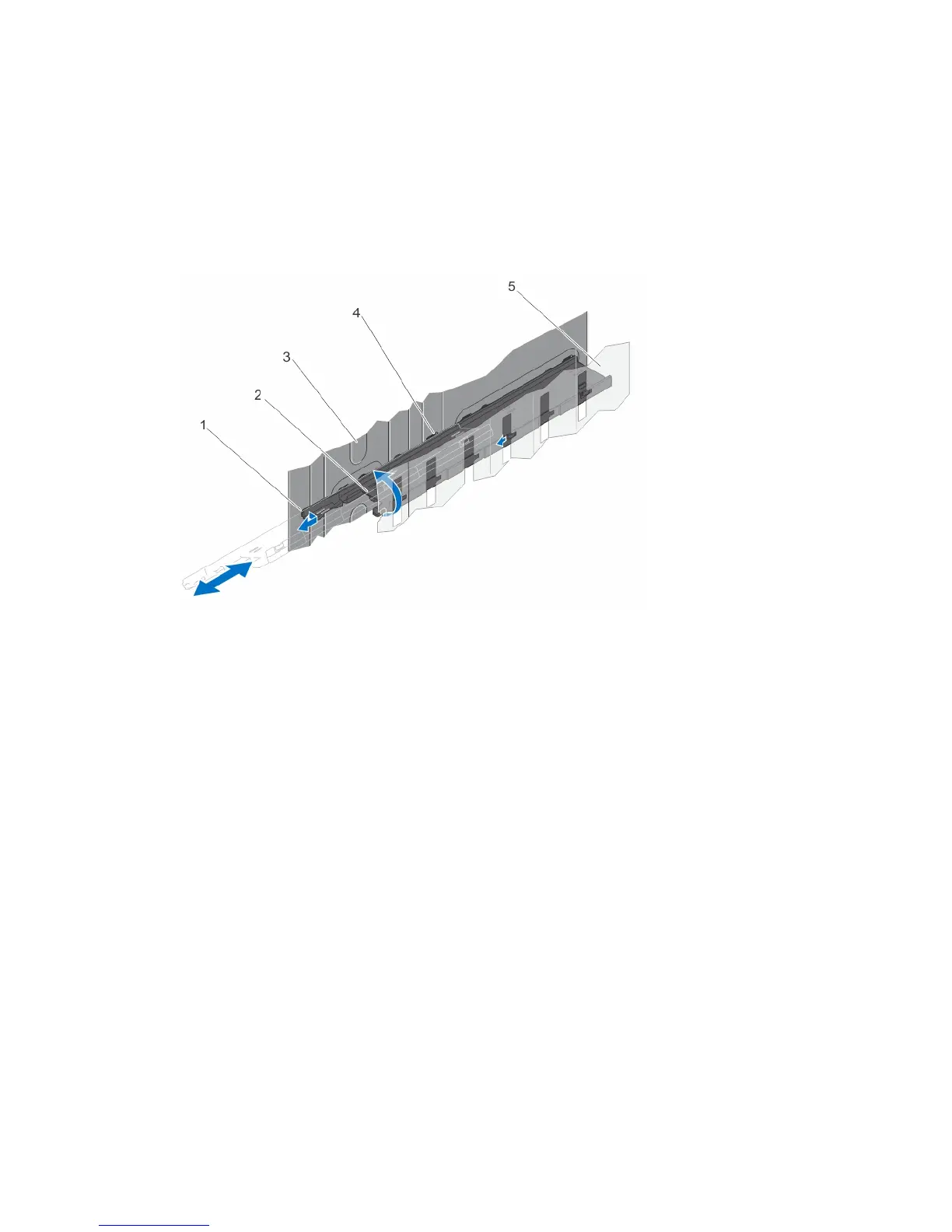

Figure 39. Removing and Installing the Server Module Partition Between Slots 1 and 3
1. locking tab on server module partition 2. server module partition
3. outer chassis wall 4. tabs on the server module partition
5. metal partition
