Dell PowerVault MD3060e Deployment Guide

Dual Server Cluster Dual Quad Port HBA 4 Enclosure High Availability Configuration

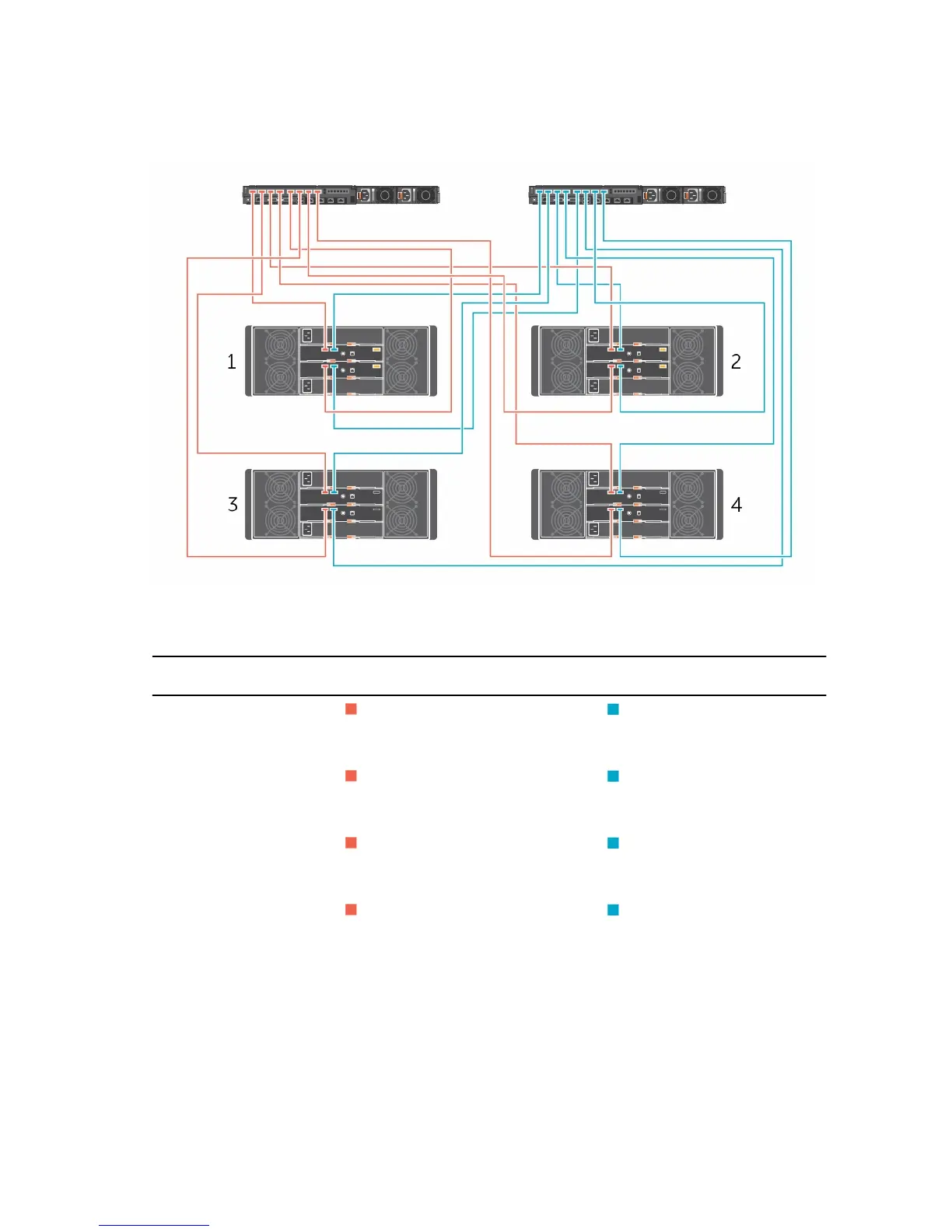

Figure 7. Dual Server Cluster Dual Quad Port HBA 4 Enclosure High Availability Cabling Diagram
Table 3. Dual Server Cluster Dual Quad Port HBA Maximum High Availability Cabling Table
Cable Color
Coding
Host Server 1 Cable Color
Coding
Host Server 2
Enclosure 1 HBA 0-EMM 0 Port 0
HBA 1-EMM 1 Port 0
HBA 0-EMM 0 Port 1
HBA 1-EMM 1 Port 1
Enclosure 2 HBA 0-EMM 0 Port 0
HBA 1-EMM 1 Port 0
HBA 0-EMM 0 Port 1
HBA 1-EMM 1 Port 1
Enclosure 3 HBA 0-EMM 0 Port 0
HBA 1-EMM 1 Port 0
HBA 0-EMM 0 Port 1
HBA 1-EMM 1 Port 1
Enclosure 4 HBA 0-EMM 0 Port 0
HBA 1-EMM 1 Port 0
HBA 0-EMM 0 Port 1
HBA 1-EMM 1 Port 1
