Dual Server Cluster 3 HBAs with 3 Enclosures High Availability Configuration

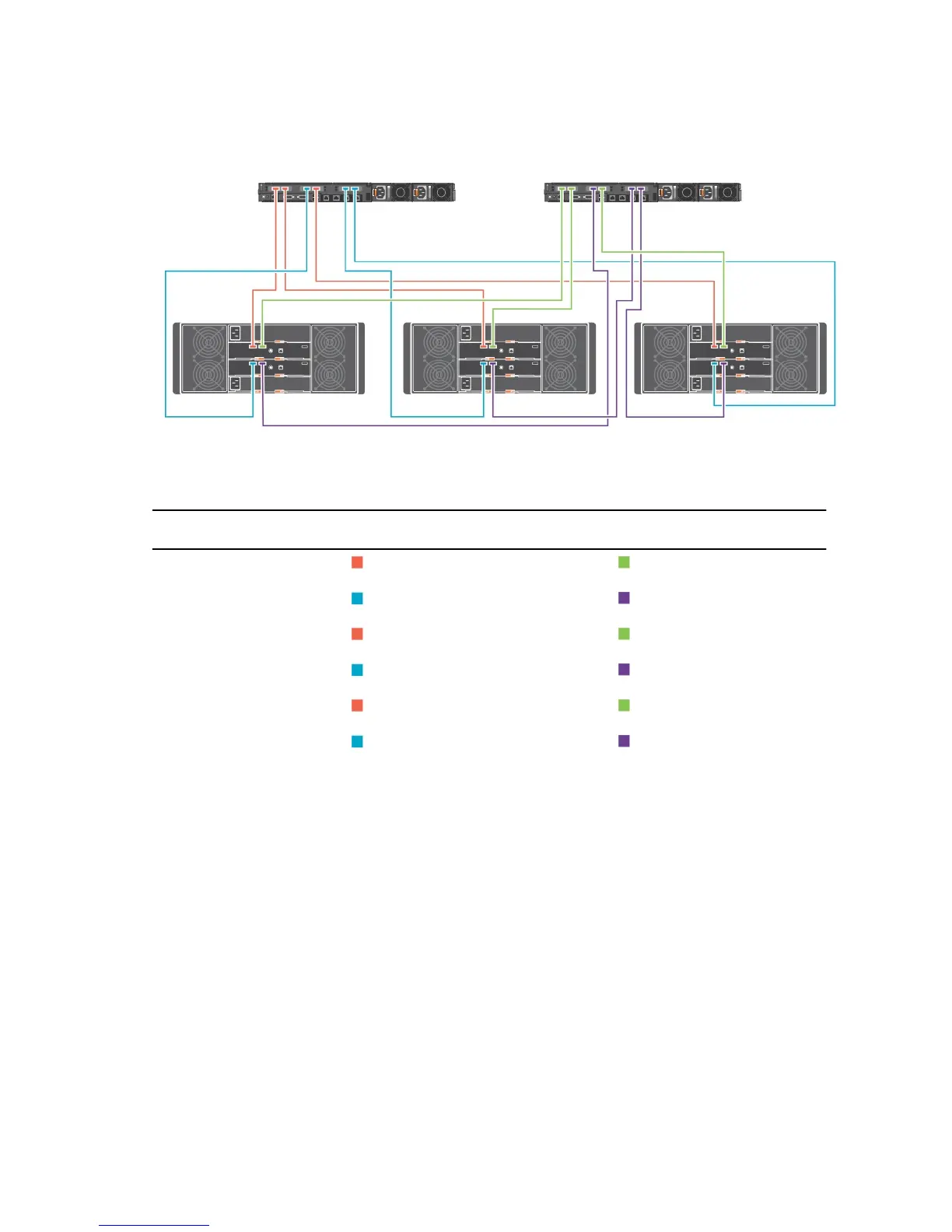

Figure 8. Dual Server Cluster 3 HBAs with 3 Enclosures High Availability Cabling Diagram
Table 4. Dual Server Cluster 3 HBAs with 3 Enclosures High Availability Cabling Table
Cable Color
Coding
Host Server 1 Cable Color
Coding
Host Server 2
Enclosure 1 HBA 0-EMM 0 Port 0 HBA 0-EMM 0 Port 1
HBA 1-EMM 1 Port 0 HBA 1-EMM 1 Port 1
Enclosure 2 HBA 0-EMM 0 Port 0 HBA 0-EMM 0 Port 1
HBA 1-EMM 1 Port 0 HBA 1-EMM 1 Port 1
Enclosure 3 HBA 1-EMM 0 Port 0 HBA 0-EMM 0 Port 1
HBA 2-EMM 1 Port 0 HBA 1-EMM 1 Port 1
