Connecting The Power Cable(s)

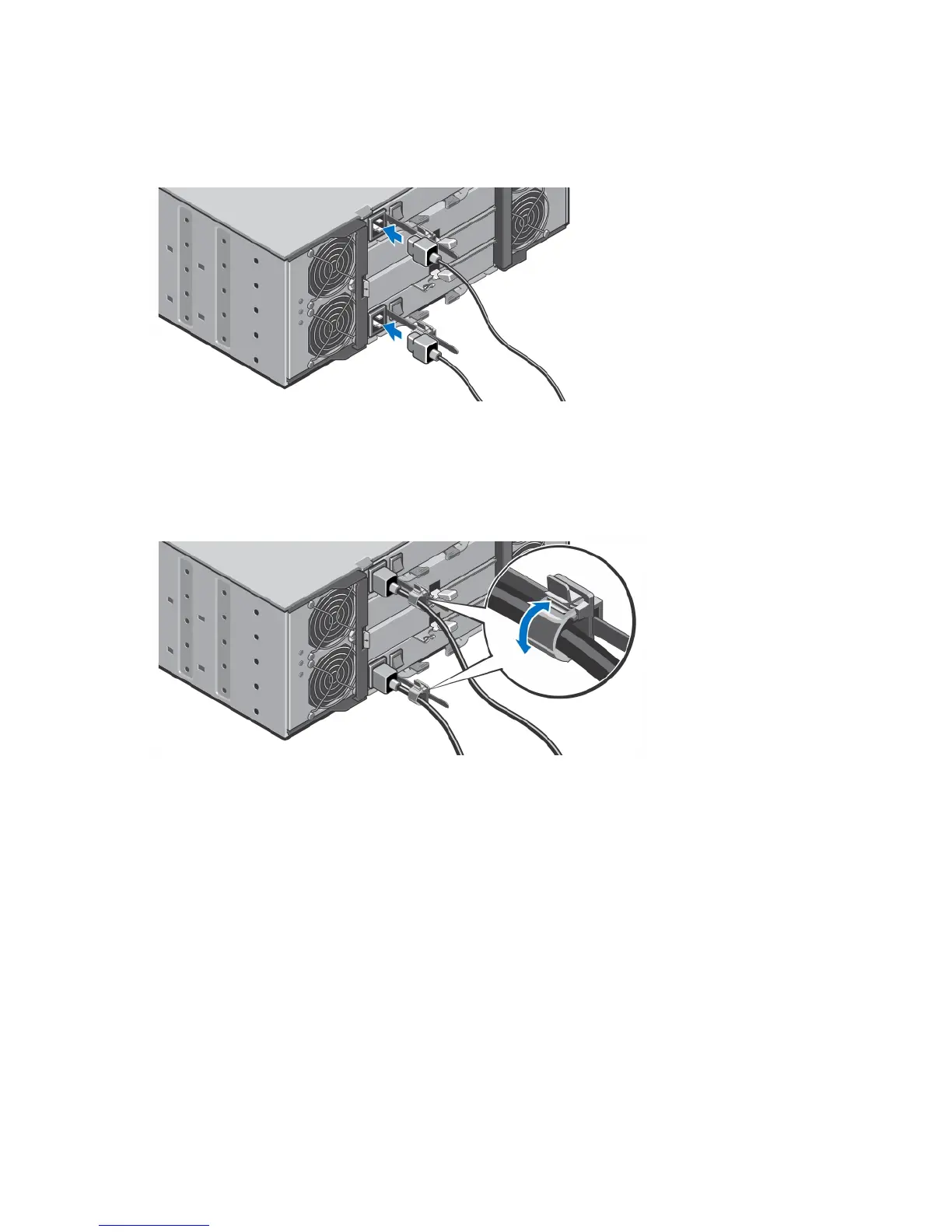

Figure 4. Connecting the Power Cable(s)
Connect the system’s power cable(s) to the system.
Securing The Power Cable(s)
Figure 5. Securing the Power Cable(s)
Open the cable retention bracket by pulling the tabs on its sides, insert the cable, and secure the system
power cable, as shown in the illustration.
Plug the other end of the power cable(s) into a grounded electrical outlet or a separate power source
such as an uninterruptible power supply (UPS) or a power distribution unit (PDU).
5
