Dell Precision 5530 2-in-1 User Manual

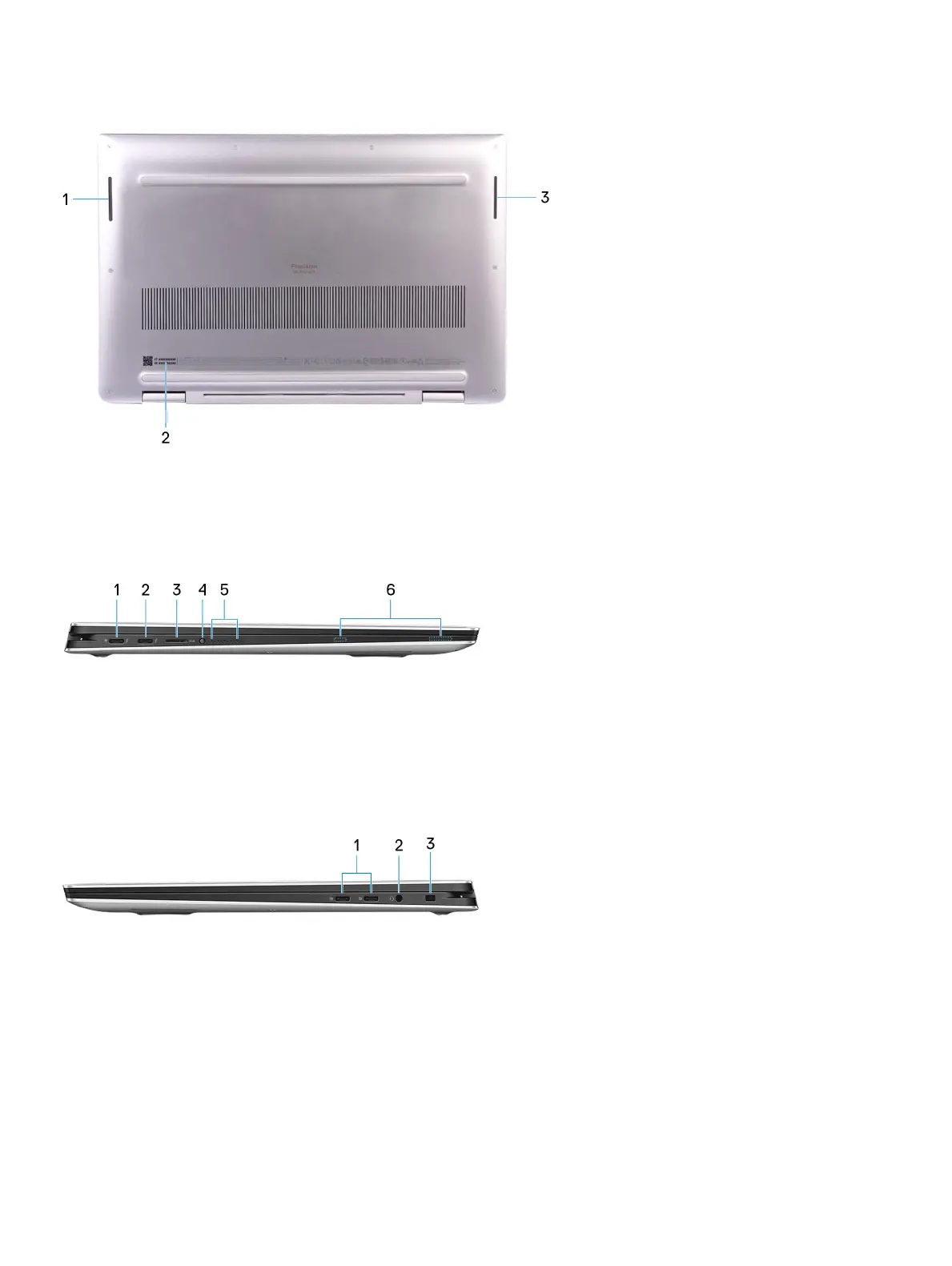

Bottom
1 Left speaker 2 Service Tag label
3 Right speaker
Left
1
Thunderbolt 3 (USB Type-C) port with Power Delivery
(Primary)
2 Thunderbolt 3 (USB Type-C) port with Power Delivery
3 microSD-card slot 4 Battery-charge status button
5 Battery-charge status lights (5) 6 Dell Premium Active Pen magnets
Right
1
USB 3.1 Gen 1 (Type-C) port with Power Delivery/DisplayPort
(2)
2 Headset port
3 Security-cable slot (for Noble locks)
Chassis 9

Dell Precision 5530 2-in-1 Specifications

General

Operating System	Windows 10 Pro
Processor	8th Generation Intel Core i5-8305G, i7-8705G
Display	3840 x 2160
RAM	Up to 32GB DDR4-2400MHz
Storage	PCIe NVMe SSD
Ports	2 x Thunderbolt 3, 2 x USB 3.1, HDMI 2.0, SD card reader
Battery	6-cell 75WHr integrated battery
Weight	4.36 lbs
Wireless	Bluetooth
Camera	720p HD webcam
Graphics	Radeon™ RX Vega M GL Graphics with 4GB HBM2 dedicated memory
