Removing and installing components
NOTE: The images in this document may differ from your computer depending on the configuration you ordered.
Recommended tools
The procedures in this document may require the following tools:
● Phillips screwdriver #0
● Phillips screwdriver #1
● Plastic scribe—Recommended for field technicians.
Screw list
NOTE: When removing screws from a component, it is recommended to note the screw type, the quantity of screws, and
then place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is
restored when the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surfaces when
replacing a component.
NOTE: Screw color may vary with the configuration ordered.

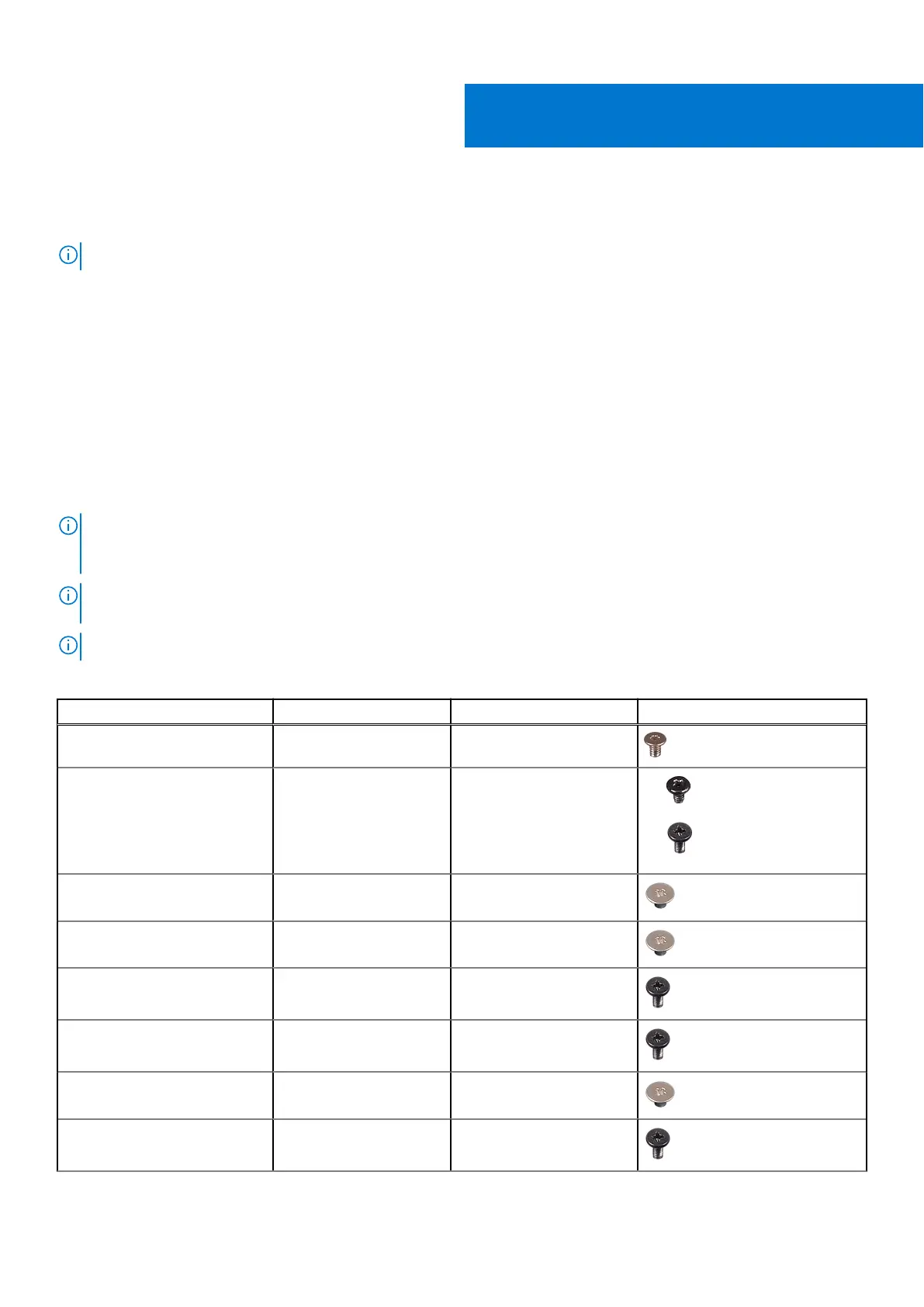

Table 1. Screw list
Component Screw type Quantity Screw image
Base cover M2x3 8
Battery
● M2x3
● M2x4
● 4
● 4
●
●
Solid-state drive1 M2x2 1
Solid-state drive2 M2x2 1
Right fan M2x4 2
Left fan M2x4 3
Speakers M2x2 2
I/O board shield M2x4 1
2
10 Removing and installing components
