About this task

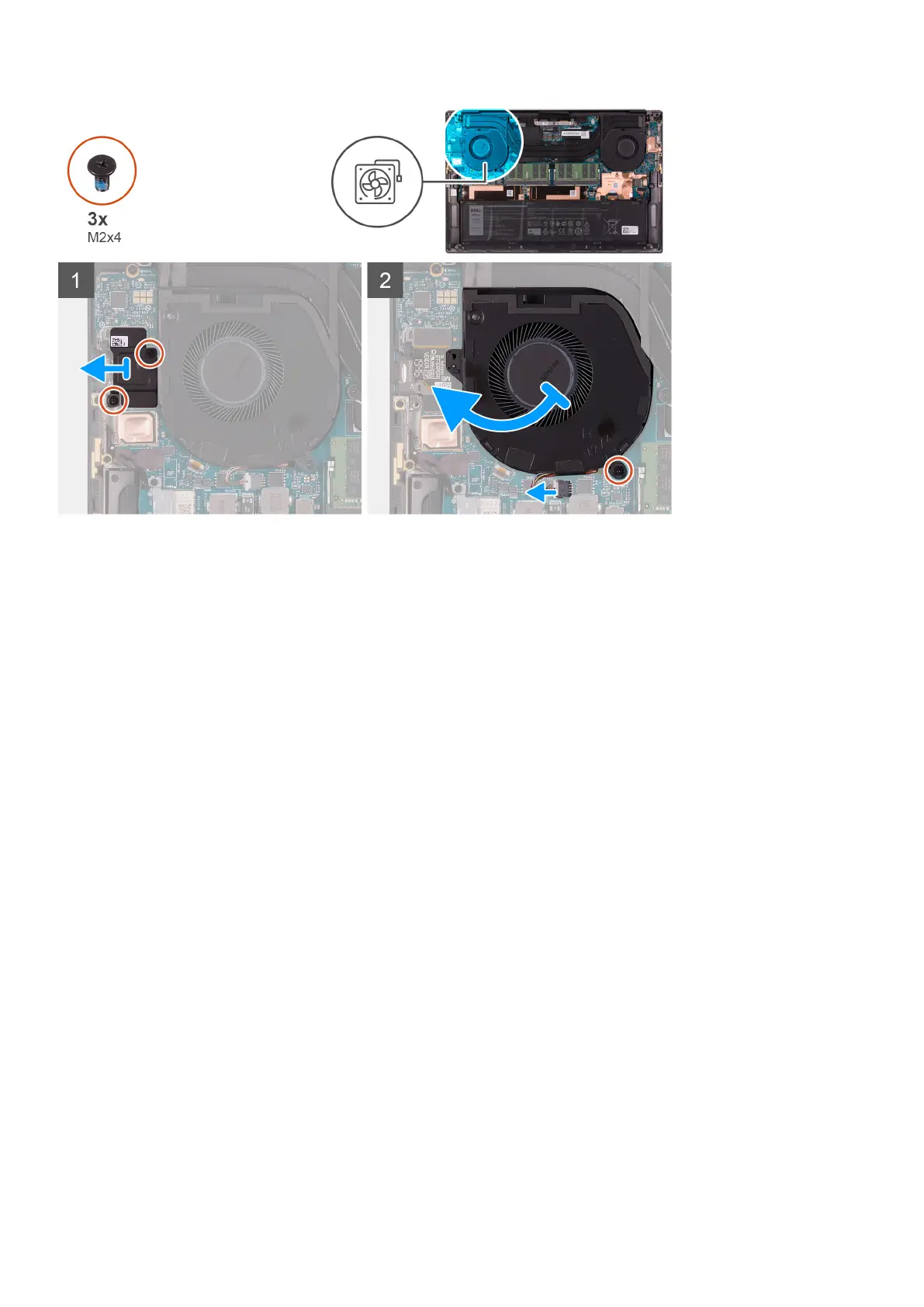

The following images indicate the location of the left fan and provide a visual representation of the installation procedure.
Steps
1. Slide the left fan below the heat sink and align the screw hole on fan with the screw hole on the palm-rest and keyboard
assembly.
2. Replace the screw (M2x4) that secures the left fan to the system board.
3. Connect the left-fan cable to the system board.
4. Align the screw holes on the I/O-board shield with the screw holes on the left fan and the system board.
5. Replace the two screws (M2x4) that secure the I/O-board shield to the left fan and palm-rest and keyboard assembly.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Removing the right fan
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
The following images indicate the location of the right fan and provide a visual representation of the removal procedure.
Removing and installing components
29
