Dell Precision 5570 W3D04 User Manual

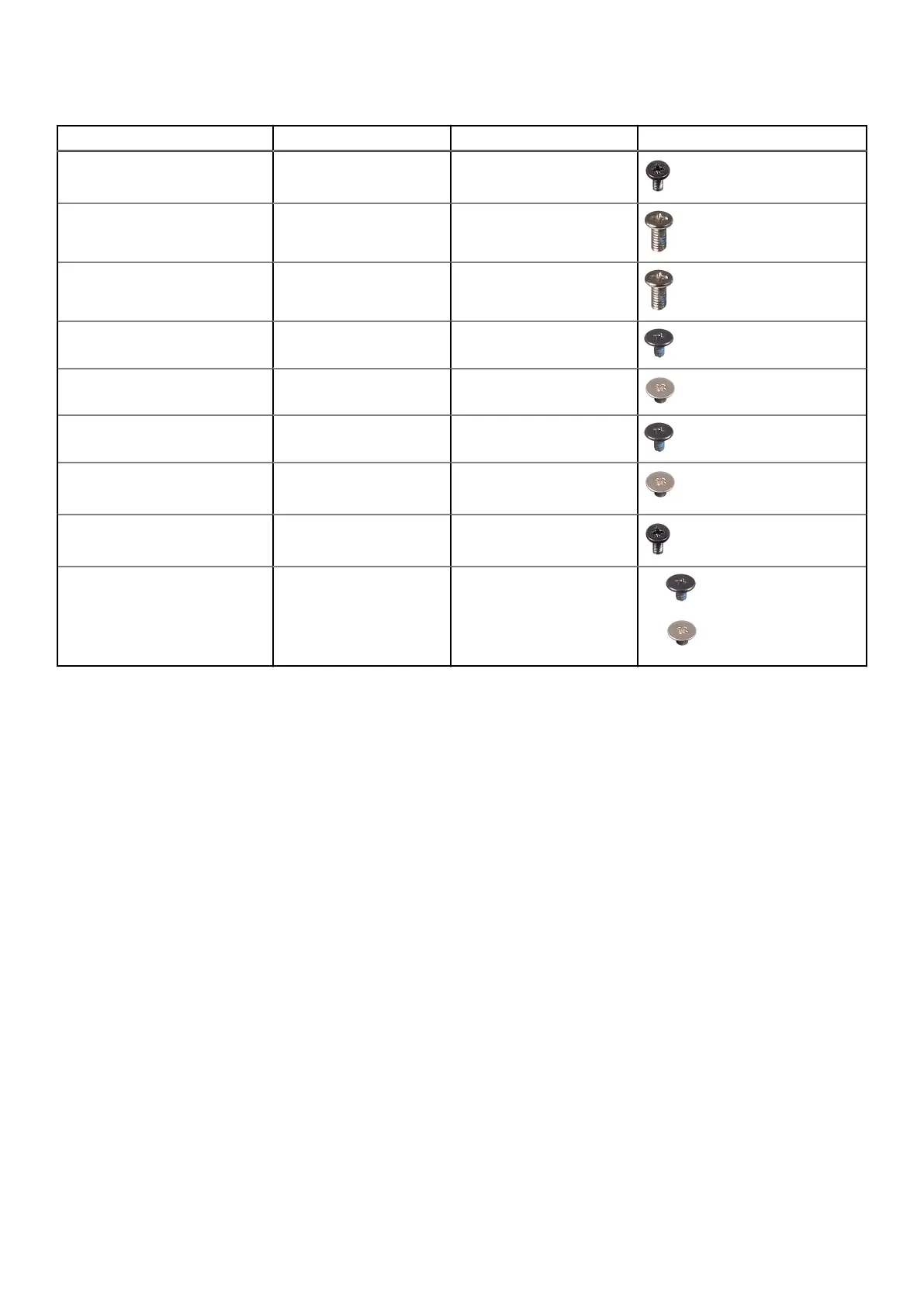

Table 1. Screw list (continued)
Component Screw type Quantity Screw image
Type-C bracket M2x4 2
Right hinge M2.5x5.5 4
Left hinge M2.5x5.5 4
Display-assembly cable holder M1.6x3 2
Display-assembly cable bracket M2x2 3
Wireless-card bracket M1.6x3 1
Graphics card-processor
thermal shield cover
M2x2 2
System board M2x4 2
Touchpad
● M1.6x2.5
● M2x2
● 4
● 4
●
●
Major components of your system
The following image shows the major components of your system.
Removing and installing components
11

Dell Precision 5570 W3D04 Specifications

General

Brand	Dell
Model	Precision 5570 W3D04
Category	Laptop
Language	English
