NOTE: This is the heat sink for computers without discrete Graphics Processing Units (GPUs).
Steps
1. Align the screw holes on the heat sink with the screw holes on the system board.
2. In sequential order (as indicated on the heat sink), tighten the four captive screws that secure the heat sink to the system
board.
NOTE:
The number of screws will vary depending on the graphics configuration of your computer.
ā With discrete Graphics Processing Units: 4
ā Without discrete Graphics Processing Units: 3
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Speakers
Removing the speakers
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task

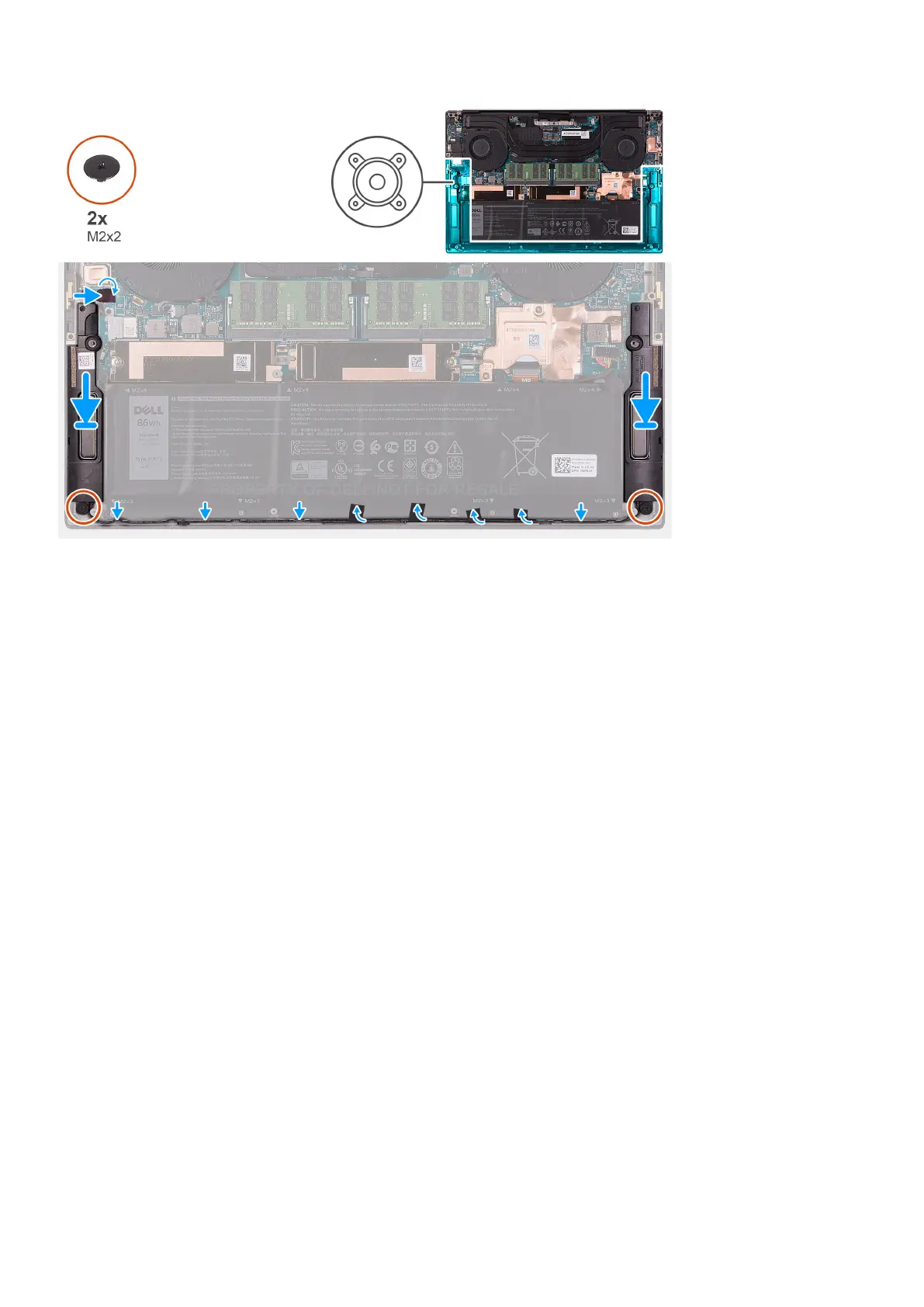

The following image indicates the location of the speakers and provides a visual representation of the removal procedure.
