Dell Precision 5760 User Manual

Steps
1. Remove the two screws (M2x4) that secure the display-cable bracket to the system board.
2. Lift the display-assembly cable bracket off the system board.
3. Push the camera connector and the display connector away from the system board to disconnect the cables from the
system board.
4. Remove the three screws (M2.5x5) that secure the left display hinge to the palm-rest and keyboard assembly.
5. Remove the three screws (M2.5x5) that secure the right display hinge to the palm-rest and keyboard assembly.
6. Lift the left and the right hinges from the palm-rest and keyboard assembly.
7. Slide the palm-rest and keyboard assembly from the display assembly.

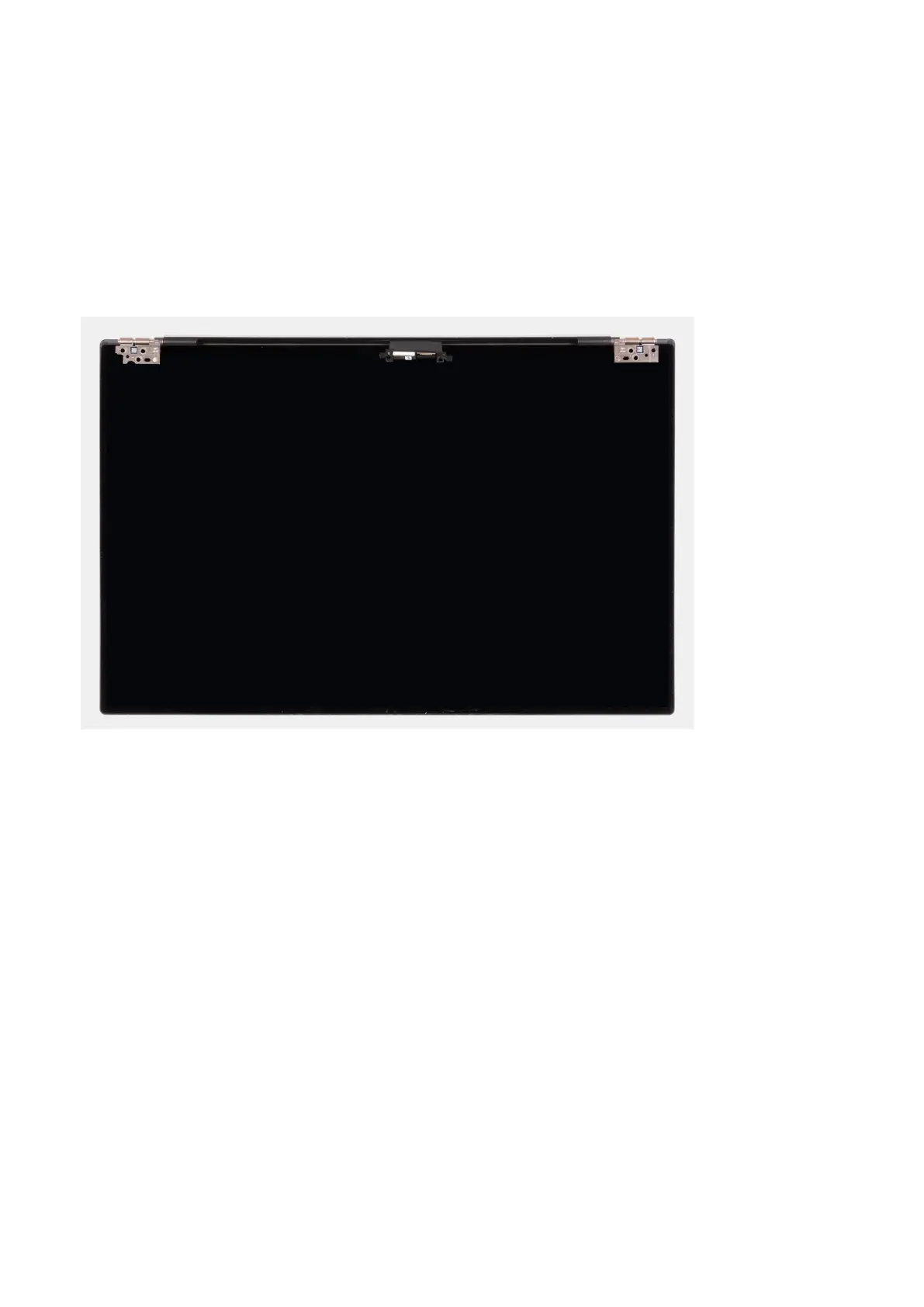

8. After performing all the above steps, you are left with the display assembly.
Installing the display assembly
Prerequisites
About this task
The following images indicate the location of the display cable and the display hinges and provide a visual representation of the
installation procedure.
40
Removing and installing components

Dell Precision 5760 Specifications

General

Graphics	NVIDIA RTX A3000
Display	17.0" UHD+ (3840 x 2400) InfinityEdge
Memory	Up to 64GB DDR4
Storage	Up to 4 TB, M.2 2280, Gen4 PCIe NVMe, SSD, Class 40
Battery	6-Cell, 97 WHr Lithium Ion Polymer Battery
Ports	1 x SD card reader, 1 x headphone/microphone combo jack
Operating System	Windows 10 Pro
Wireless	Wi-Fi 6 (802.11ax), Bluetooth 5.2
Camera	720p at 30 fps HD camera
Audio	Stereo speakers with Waves MaxxAudio Pro
Dimensions	374.48 mm
Weight	2.13 kg
Processor	11th Generation Intel Core i7-11850H
