d heat sink and CPU fan assembly
e system fan
f air shroud
g 5.25 ODD bracket
h ODD
i front bezel
j side cover
7 Follow the procedure in After working inside your computer.
System board components

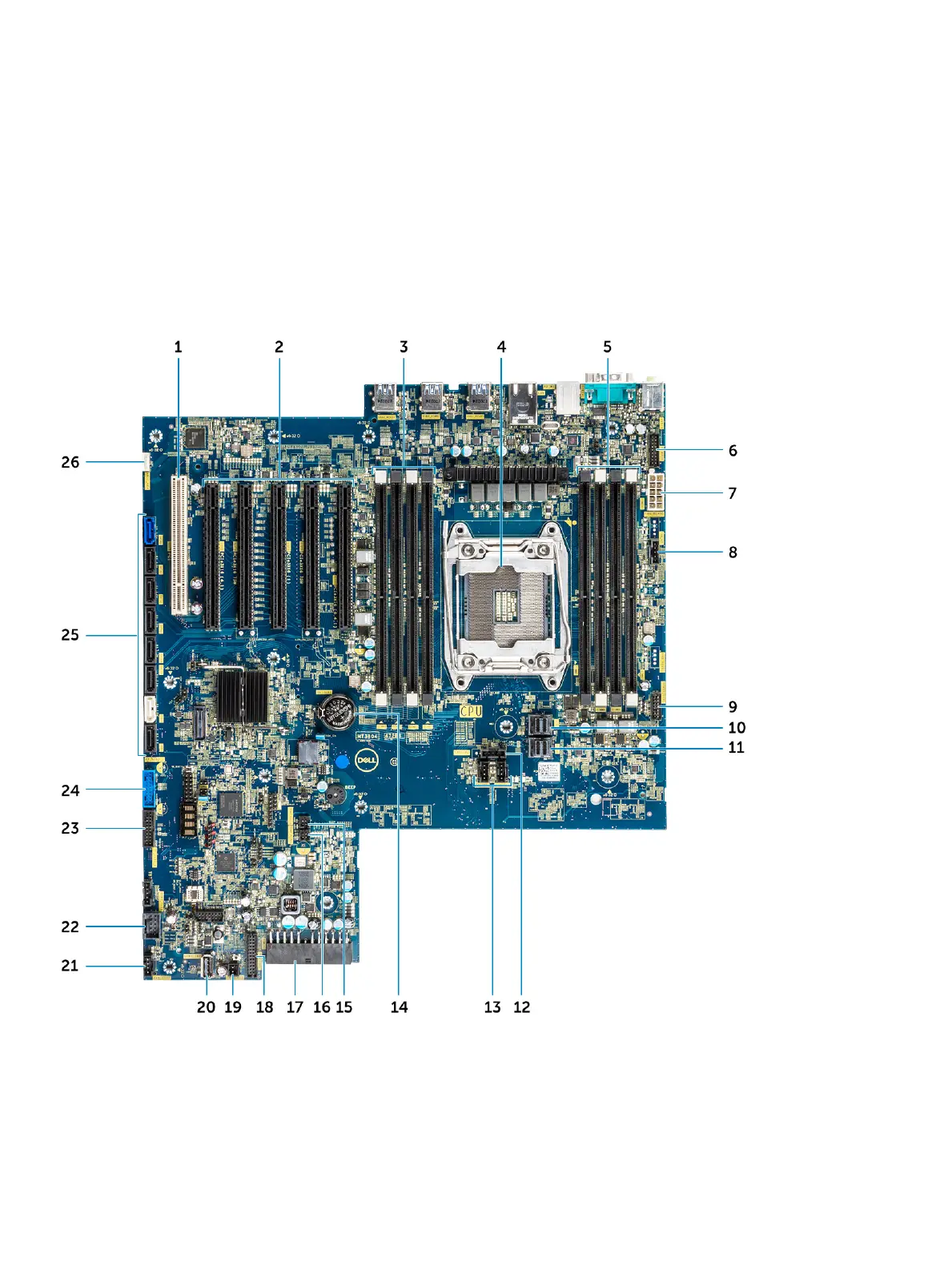

The following image displays the system board components.
1 Slot 6 PCI 2 Slot PCI 3x16
3 Memory slots 4 CPU0
5 Memory slots 6 Front panel audio port
7 Power CPU port 8 System fan port
Removing and installing components 59
