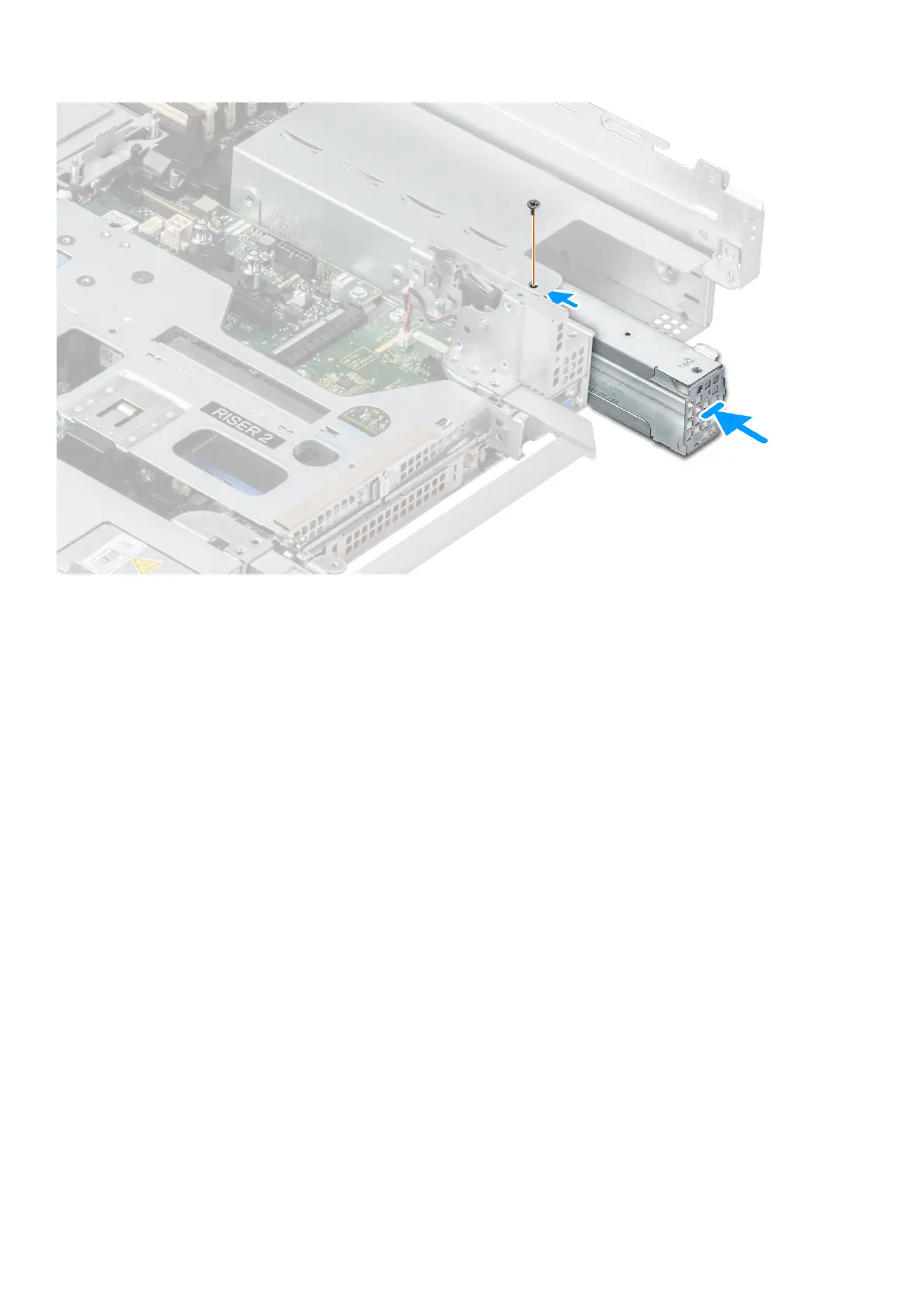

Steps
1. Align and insert the power supply unit adapter.
2. Tighten the screw to secure the power supply unit adapter.
Next steps
1. Install the system cover.
2. Follow the procedure in After working inside your computer.
Removing the power supply unit
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the system cover.
About this task
The following images indicate the location of the power supply unit and provide a visual representation of the removal
procedure.
Removing and installing components
59
