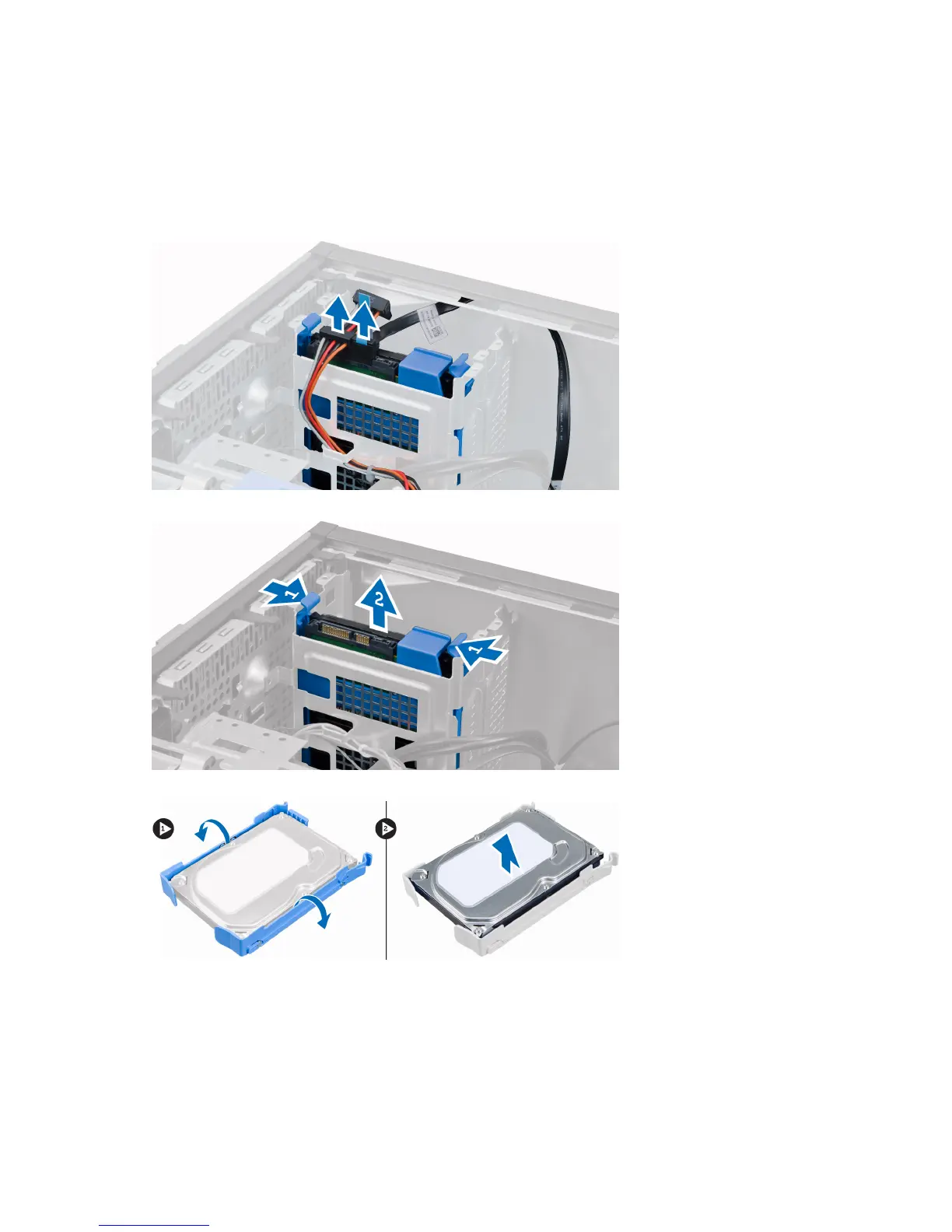

Removing the Hard Drive
1. Follow the procedures in
Before Working Inside Your Computer
.
2. Remove the cover.
3. Disconnect and remove the data and the power cables from the back of the hard drive.
4. Press the securing tabs inward and lift the hard-drive bracket out of the drive bay.
5. Flex the hard-drive bracket and remove the hard drive from the bracket.
6. Repeat the steps 3 to 5 to remove the second hard drive, if available.
14
