4. Place the thermal pad in the slot on the system board and peel the pink adhesive tape [1,2].
5. Slide the PCIe SSD card into the slot and tighten the screw to secure the card to the system board
[1,2].

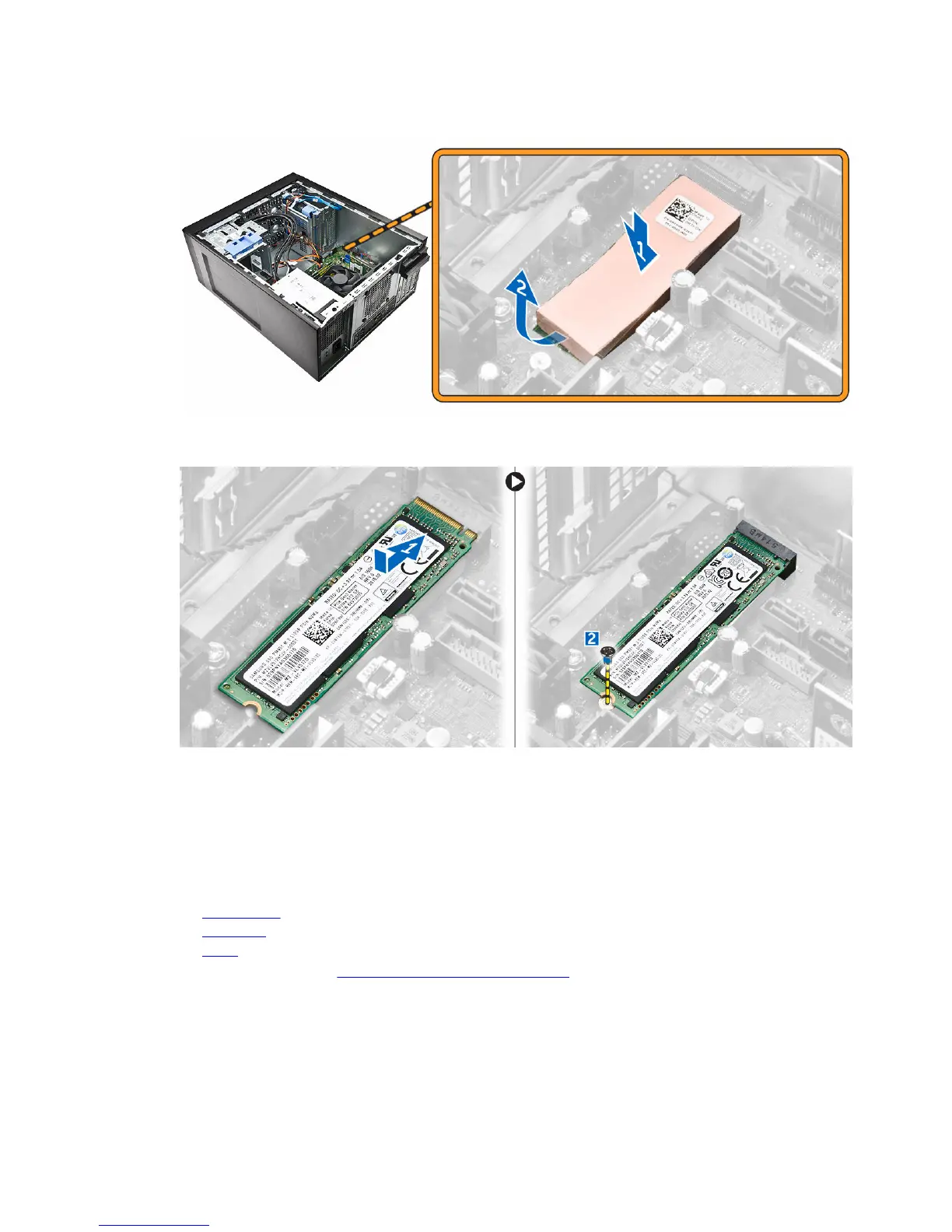

Removing the PCIe Solid State Drive (SSD)
1. Remove the screw that secures the PCIe SSD card.
2. Slide and lift the PCIe SSD card from the computer.
3. Lift the thermal pad from the system board.
4. Install the:
a. optical drive
b. hard drive
c. cover
5. Follow the procedure in After Working Inside Your Computer.
