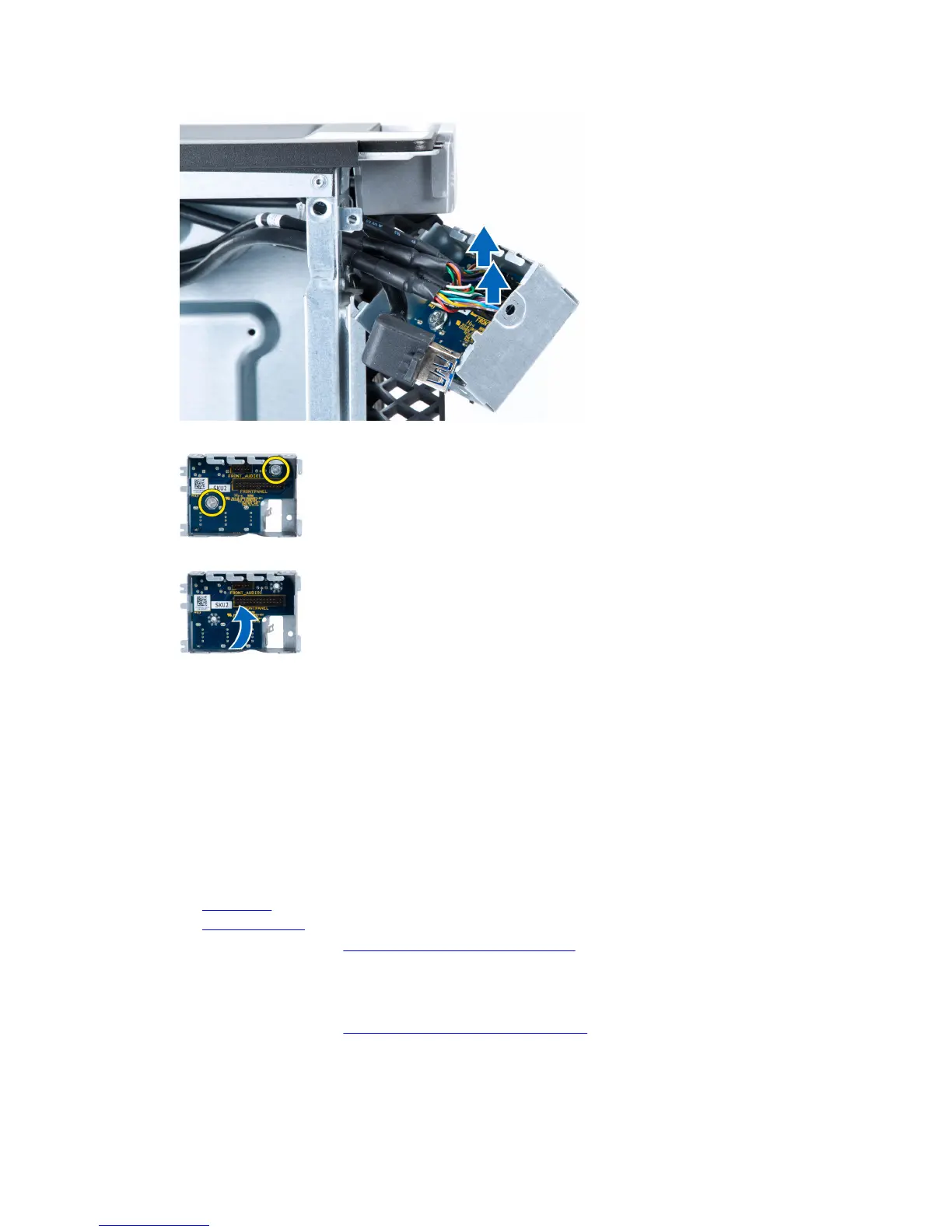

6. Remove the screws that secure the I/O panel to the I/O panel cage.
7. Remove the I/O panel from the I/O panel cage.
Installing the Input/Output (I/O) Panel
1. Replace the I/O panel in the I/O panel cage.
2. Tighten the screws to secure the I/O panel to the I/O panel cage.
3. Connect the cables to the I/O panel.
4. Place the USB 3.0 module in its slot.
5. Tighten the screws that secure the USB 3.0 module to the I/O panel cage.
6. Replace the I/O panel cage into its slot.
7. Tighten the screws that secure I/O panel cage to the chassis.
8. Install:
a. front bezel
b. computer cover
9. Follow the procedures in After Working Inside Your Computer.
Removing the Memory Shroud
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove:
23

Dell Precision Tower 7810 Specifications

General

Tcase	78.9 °C
Bus type	QPI
Stepping	M1
FSB Parity	No
Processor cache	25 MB
Processor cores	10
Processor model	E5-2650V3
System bus rate	9.6 GT/s
Processor series	Intel Xeon E5-2600 v3
Processor socket	LGA 2011-v3
Processor threads	20
Processor codename	Haswell
Number of QPI links	2
Processor frequency	2.3 GHz
Processor cache type	Smart Cache
Processor lithography	22 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	3.0
Processor boost frequency	3 GHz
Processor operating modes	64-bit
ECC supported by processor	Yes
PCI Express configurations	x4, x8, x16
Thermal Design Power (TDP)	105 W
Number of processors installed	1
Maximum number of PCI Express lanes	40
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	1600, 1866, 2133 MHz
Memory bandwidth supported by processor (max)	68 GB/s
Maximum internal memory supported by processor	768 GB
Memory slots	8x DIMM
Internal memory	32 GB
Memory channels	Quad-channel
Memory clock speed	2133 MHz
Maximum internal memory	128 GB
Memory layout (slots x size)	4 x 8 GB
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
Storage media	SSD
Optical drive type	DVD Super Multi
Total storage capacity	256 GB
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Discrete graphics card model	NVIDIA® Quadro® K5200
On-board graphics card model	-
Discrete graphics card memory	8192 GB
Discrete graphics memory type	GDDR5
Operating system installed	Windows 7 Professional
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
USB 2.0 ports quantity	6
VGA (D-Sub) ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
PCI Express x16 (Gen 3.x) slots	3
Chassis type	Tower
Product color	Black
Placement supported	Horizontal/Vertical
Audio system	ALC3220
Product type	Workstation
Motherboard chipset	Intel® C612
Password protection type	BIOS
Scalability	2S
Processor code	SR1YA
Processor ARK ID	81705
Processor package size	52.5 x 45 mm
Supported instruction sets	AVX 2.0
Physical Address Extension (PAE)	46 bit
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	0.00
Power supply	685 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50 - 60 Hz
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Display type	LED
Display diagonal	27 \
Display brightness	350 cd/m²
Native aspect ratio	16:9
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors

Weight and Dimensions

Depth	471 mm
Width	172.6 mm
Height	416.9 mm
Weight	12400 g
