Dell S2721DGFA - Pin Assignments

18 | About your monitor

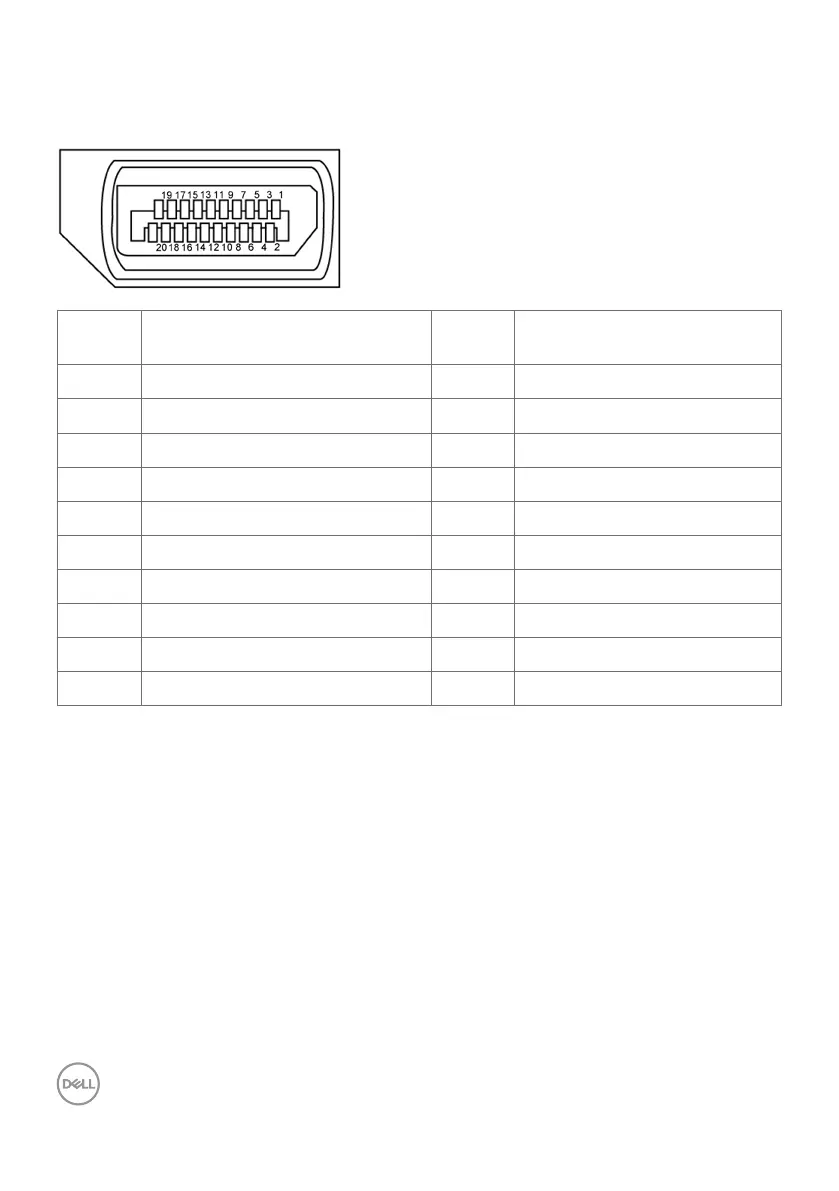

Pin assignments
DisplayPort
Pin
number
20-pin side of the
connected signal cable
Pin
number
20-pin side of the
connected signal cable
1 ML3(n) 11 GND
2 GND 12 ML0(p)
3 ML3(p) 13 CONFIG1
4 ML2(n) 14 CONFIG2
5 GND 15 AUX CH (p)
6 ML2(p) 16 GND
7 ML1(n) 17 AUX CH (n)
8 GND 18 Hot Plug Detect
9 ML1(p) 19 Return
10 ML0(n) 20 DP_PWR
